Vehicle Speed Capture System

Product Name: Vehicle Speed Capturing System
Product Model: See The Following Table
Product Description:

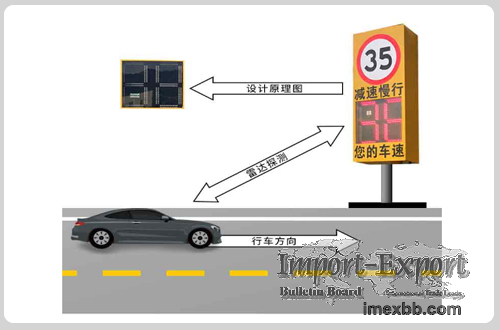

Built-in high-precision detection radar, real-time display of vehicle speed,
speed of speeding vehicles with red characters displayed, not speeding
vehicle speed with green characters displayed, can be selected solar panel
power supply, vehicle capture system, for speeding vehicles to capture
vehicle pictures, assist traffic management personnel analysis.
Application Description:
Highways, military control areas, schools, private villa areas, to remind the
speed of vehicles to reduce traffic accidents.

Model No：SS-VEHICLE-220V3L10T2CH24G
Technical Parameters:
Product Type
220V power supply speed warning display system
Product Description
220V power supply, real-time 2-lane vehicle speed, support 10 speed limit
Settings, rover distance 1-250 meters
Scope of application
Highways, schools, hospitals, villas, and other locations that require speed
warnings
LED Screen
1.Resolution: 48*48
2.Size: 1100*600*70mm
3.Line: Top and bottom two lines
4.Power supply: 220V
5.Operating voltage: 12VDC
6.Power supply: 1.5A
Radar
1.Transmission frequency: 24GHz
2.Transmit power: 6dBm
3.Power consumption: 0.5w
4.Sampling frequency: 25KHz
5.Response time: 20~200ms
6.Communication interface: RS485
7.Power supply voltage: 12V/DC
8.Detection distance: 1~250m
9.Speed range: 2~250Km/h
10.Speed accuracy: ±1Km/h

Model No：SS-VEHICLE-SR3L10T4CH24
Technical Parameters:
Product Type
Solar powered speed warning display syste
Product Description
Solar powered, real-time 2-lane vehicle speed, support for 10 speed limit
Settings, rover distance 1-250 meters
Scope of application
Highways, schools, hospitals, villas, and other locations that require speed
warnings
LED Screen
1.Resolution: 48*48
2.Size: 1100*600*70mm
3.Line: Top and bottom two lines
4.Power supply: 220V
5.Operating voltage: 12VDC
6.Power supply: 1.5A
Radar
1.Transmission frequency: 24GHz
2.Transmit power: 6dBm
3.Power consumption: 0.5w
4.Sampling frequency: 25KHz
5.Response time: 20~200ms
6.Communication interface: RS485
7.Power supply voltage: 12V/DC
8.Detection distance: 1~250m
9.Speed range: 2~250Km/h
10.Speed accuracy: ±1Km/h
Solar Energy
1.Peak power: 100W
2.Battery: 3*12mm
3.Size: 540*510*18mm
4.Lead-acid battery voltage: 12V
5.Lead-acid battery capacity: 120AH
6.Controller overdischarge protection voltage: 10.3±0.1V
7.Controller overcharge protection voltage: 14.5±0.1V
8.Power consumption during discharge operation: (3-4) ma
9.Power consumption after overdischarge protection: (1-2) ma

Model No：SS-VEHICLE-220VSP3L10T2CH24
Technical Parameters:
Product Type
220V power supply speed capture display system
Product Description
220V power supply, real-time 2-lane vehicle speed, support 10 speed limit
Settings, rover distance 1-250 meters, real-time capture of passing vehicles
Scope of application
Highways, schools, hospitals, villas, and other locations that require speed
warnings
LED Screen
1.Resolution: 48*48
2.Size: 1100*600*70mm
3.Line: Top and bottom two lines
4.Power supply: 220V
5.Operating voltage: 12VDC
6.Power supply: 1.5A
Radar
1.Transmission frequency: 24GHz
2.Transmit power: 6dBm
3.Power consumption: 0.5w
4.Sampling frequency: 25KHz
5.Response time: 20~200ms
6.Communication interface: RS485
7.Power supply voltage: 12V/DC
8.Detection distance: 1~250m
9.Speed range: 2~250Km/h
10.Speed accuracy: ±1Km/h
Snap Camera
1.Capture software: Built-in
2.Frame rate: 60fps
3.Lens: 25mm
4.Detection speed :120KM/H
5.Power supply mode: 12VDC
6.Operating temperature: -40°C ~ 70°C
7.Communication: RJ45
