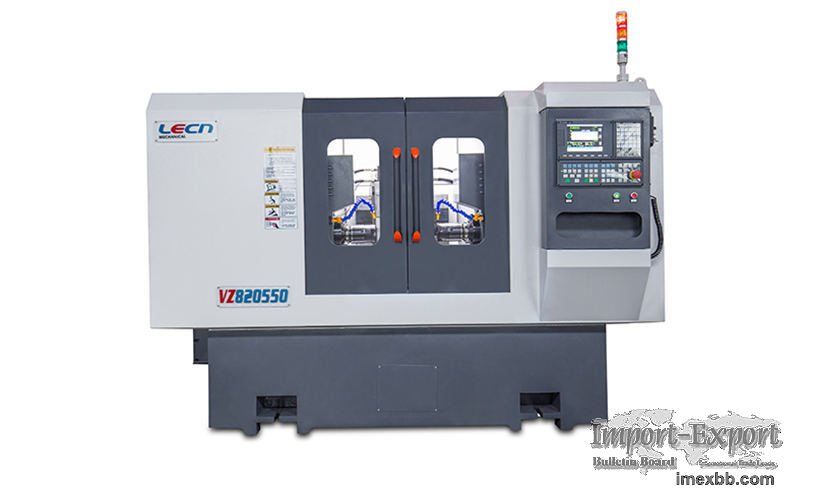

Vertical Facing And Centering Machine VZ820550

Both ends of the one clamping are processed at the same time, the vertical
facing and centering machine with 100-500 mm workpiece length is suitable for
milling, chariot, drilling center hole, drilling, tapping, boring, reaming,
grooving package of all kinds of slender, irregular and stepped parts. High
coaxiality, high efficiency, it can carry with truss or joint robot and
automatical line.
Technical Parameters
ITEM VZ820550
Clamping Diameter Scope, mm Ø15-Ø50
Workpiece Length Scope, mm 100-500
Max Center Drilling Clamping Diameter, mm Ø16
Max Milling Amount(One Side), mm 4
Vertical Facing and Centering Machines are commonly used in industries such as
metalworking, where precision and smooth surfaces are essential. They are often
used for tasks like preparing the ends of shafts or other cylindrical
components for further machining, assembly, or inspection.
The specific design and capabilities of these machines can vary, but their
primary functions remain consistent in terms of facing and centering
workpieces. They can be operated manually or using computer numerical control
(CNC) systems for greater precision and automation.
