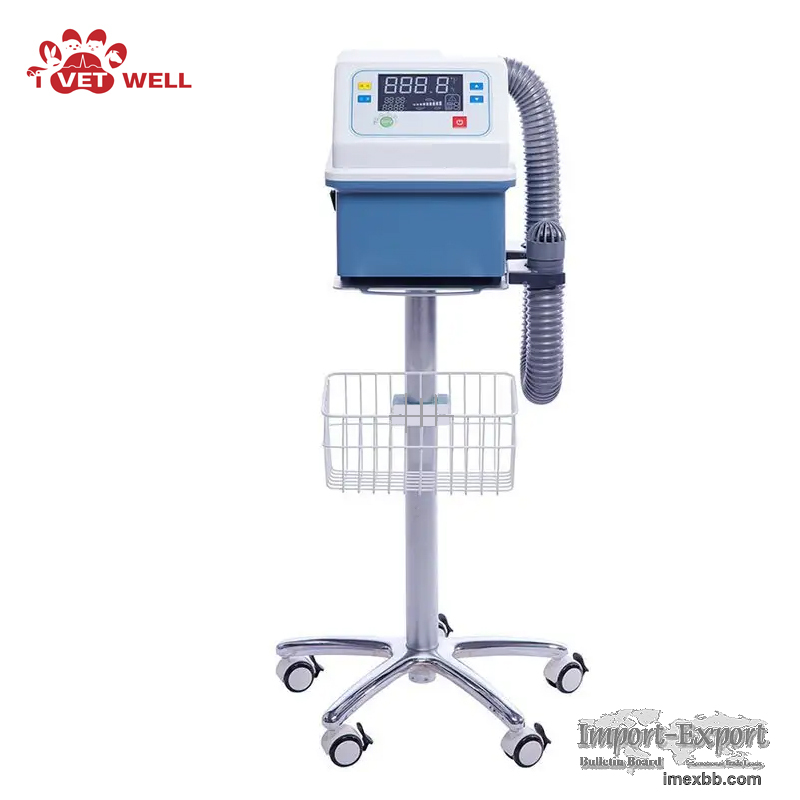

Veterinary Heating Blanket

1. Host (Main Unit) – Contains the heating unit, temperature sensor, temperature
control circuit, and power unit. It filters and heats air to a set temperature,
then delivers warm air through the air supply pipe to the heating blanket.



2. Display Screen – Shows the set temperature (25–45°C), current runtime,
cumulative power‑on time (0–10,000h cycle), and countdown timer. The screen
enters rest mode after 10 minutes of inactivity but wakes with any key press or
alarm.



3. Control Knobs / Buttons – Include four shortcut keys for room temperature /
25°C / 32°C / 38°C / 43°C, plus continuous adjustment in 0.1°C steps
(fast‑forward capable). Wind speed is adjustable across 9 levels (low, medium,
high three domains).



4. Air Filtration System – Epoxy‑sterilized system with HDPE‑type G4 primary
filter + H13/H14 high‑efficiency filters, achieving filtration efficiency for
particles ≤0.2μm. H13/H14 filter replacement is required every 12 months or 2000
hours.
