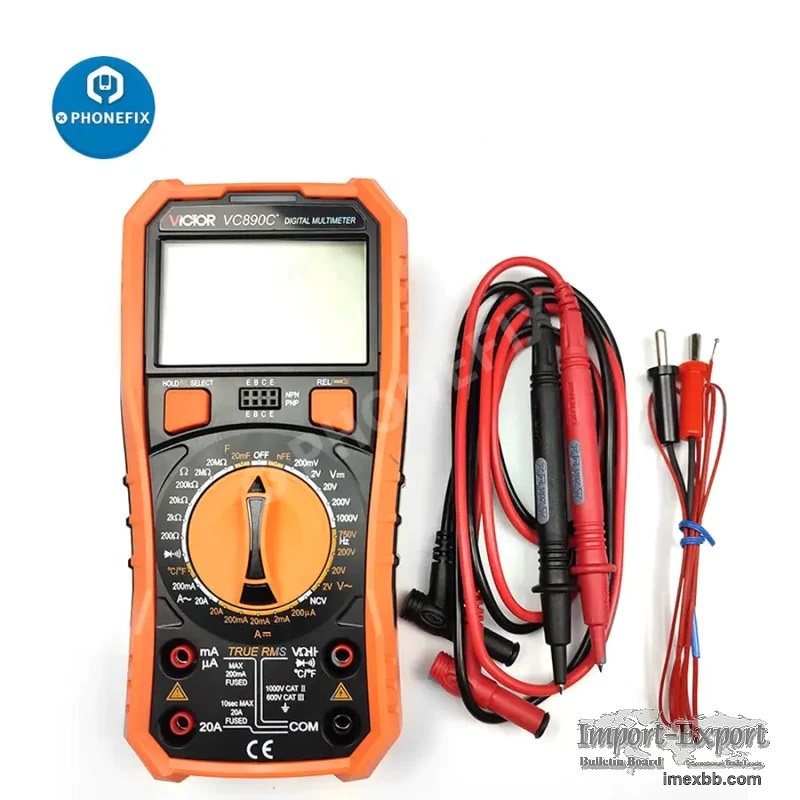

VICTOR VC890C+ Digital Multimeter Phone Repair Tool

VICTOR VC890C+ Digital Multimeter phone repair tool. VC890D Digital
Multimeter Mobile Phone Repair Fix Tool.

VC890C+ is a digital multimeter for Mobile Phone Repair Fix Tool. It can be
used to measure AC voltage, DC voltage, DC current, AC current, resistance,
capacitors, continuity test, diode test etc. The handle held design is the
best choice for field work, laboratories, factories, and other applications.

Note: VC890D is discontinued, upgraded version is VC890C+.

Product Features :
New type holster, streamline design
Large LCD makes the reading clearly.
Metallic screen board with stronger anti-magnetic and anti-interference
function.
No power off under natural operation.
Full function protection, anti-high voltage circuit design.
Restorable fuse protection circuit design.

Features :
3 1/2 LCD Display
Auto power off
Capacitance test
Stream line design
Overload protection
Self-recovery fuse

Product Specifications :
Voltage DC: 200mV/2V/20V/200V/1000V ±(0.5%+3)
Voltage AC: 200mV /2V/20V/200V/700V ±（0.8%+5）
Current DC: 2mA/20mA/200mA/10A ±(1.0%+3)
Current AC: 2mA/20mA/200mA/10A ±(2.0%+3)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20 MΩ/200 MΩ ±(0.8%+3)
Capacitance: 20nF/200nF/2μF/20μF/200μF ±(4.0%+3)
Diode test: YES
Triode test: YES
On-off test: YES
Auto power off: YES
Data hold: YES
Low battery display: YES

Package includes :

1pcs x VC890C+ digital multimeter without battery
1 Set of multimeter leads
1pcs x instruction manual

Minimum Order: 1 pieces
