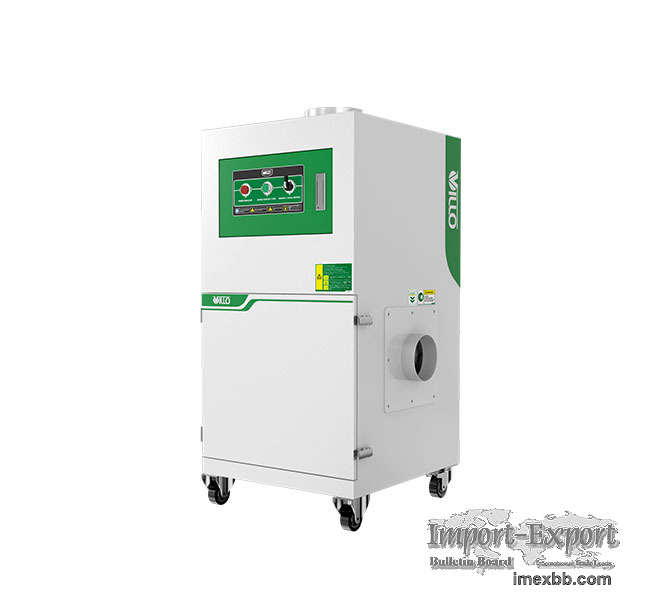

VJ-H Series Manual Cleaning Type Industrial Dust Collector

VJ-H Series is a simple industrial dust vacuum collector with large air volume,
stable and reliable mechanical structure, small footprint, and flexible
movement.

Parameters of VJ-H Series Manual Cleaning Type Industrial Dust Collection
System
Model VJ-1.5H VJ-2.2H VJ-3.0H
Voltage (V/Hz) 380 / 50
Power(kW)/ ( HP ) 1.5 / 2.0 2.2 / 3.0 3.0 / 4.0
Starting current （A） 25 40 50
Rated current（A） 3.4 4.8 6.4
Max air flow
(m³/h)/ ( CFM ) 1500 / 883 2200 / 1295 3000 / 1765
Dia. air inlet
(mm) / (in) Ø 150 /6 Ø 200 / 8
Noise dB (A) 73±2 75±2 77±2
Filter area
( m²) / ( sq.ft ) 8 / 86
Filter efficiency >99%
Filter cleaning method Rotary vane dust vibration structure
Capacity of the dust
container ( L ) / ( gal ) 15 / 4.0
Dimension [L*W*H]
(mm) / (in) 653*700*1300
/25.7*27.6*51.2 653*700*1300
/ 25.7*27.6*51.2 653*700*1362
/ 25.7*27.6*53.6
Weight (kg) / (lb) 130 / 287 140 / 309 190 / 419
It is normal that the current value may fluctuate in a small range
Voltage and frequency will affect the current value

Features of VJ-H Series Manual Cleaning Type Industrial Dust Collector
Horizontal filter installation mechanism can reduce the height of machine, and
can be very suitable for space limited working conditions. The material of
filter cartridge can be water-oil resistant, polyester or other type depending
upon the customer needs.

Patented manual filter cleaning is used (Patent No. 201220489001.3), at the
back side of the machine, there is a rotary handle to clean the accumulated
dust on the filter. It is convenient and cost saving.

To keep the machine running safely and conveniently, the machine is equipped
with a simple type magnetic switch, which has the thermal overload protection
function. Also, it can achieve remote control function according to customer’s
requirement.

If you want to know more about industrial dust collector price, please contact
us.
