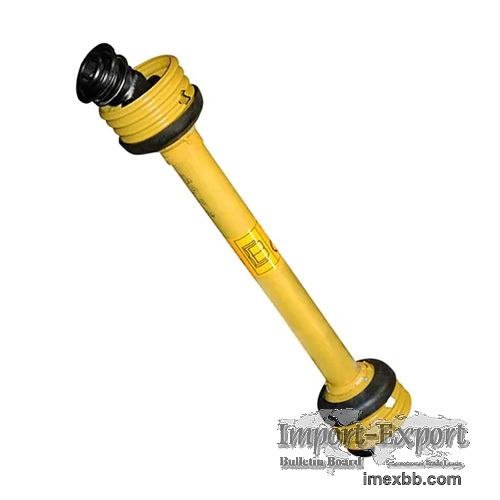

W 2100 Series PTO Shaft Replacement of Walterscheid

W 2100 Series PTO Shaft Replacement of Walterscheid

The conventional style is suitable for utilization of drive shafts that have
parallel axes. Based on the specific situation, it is suggested that a joint
of a simple design be operated to an angle of. 25deg. An angle that is
constant throughout continuous operation up to max. 15deg must not be
exceeded.

Advantages Of W 2100 Series PTO shaft
The W-Series PTO drive shafts feature the proven HZPT technology and are
perfect for any application. The most notable benefits that come with these
PTO drive shaft is its longevity of service as well as its ease of use and
the best security features. HZPT is a reliable warranty of the best quality
for years. The W-Series is designed to handle simple to more complex tasks
on the driveline. It is awe-inspiring to users thanks to its durable design
and reliability for use in everyday life. Another benefit is that all
components included in this series of PTO W-series driveshaft can be changed
with ease for greater user-friendliness or in the event that replacement
parts are needed.

Specifications Of W 2100 Series PTO shaft
Long description
PTO drive shafts complete standard series W 2100

Application selection
Small crop sprayers
Tedders
Windrowers
Properties
Tension side 1-3/8" (6) shaft collar kit
Machine side 3/8" (6) sliding pin
A frequency of oiling ranging ranges from 50-100 hours
In compliance with the requirements set out in EC 993/392 EEC
Conforming to EN12965, the standard for safety EN12965
CE marking is available
It consists of
PTO shaft shielded
Declaration of conformity
Instruction manual
Technical details
See Walterscheid instruction manual
Max. dynamic capacity 120 rpm: 540 rpm and 220 Nm
Max. dynamic capacity at 1000 rpm: 18 kW 175 Nm
Values at 5deg angle at work and service life of 1000 hours
LZ = length of slid in millimeters starting at intersection and ending
PTO Shafts Parts and components
Tractor Yoke Cross and Bearing Kit Shaft Shaft Weld Yoke
Slip Sleeve Tube Tube Weld Yoke Implement Yoke
Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard &
Guard Bearing
Does it the PTO Shaft North American or Metric?
The most straightforward way to identify if the PTO is North American or
Metric is to examine the form of the shafting and tubing. PTO is considered
domestic when the tubing/shaft is rectangular, square or hexagonal. It can
also be splined. If the tubing/shaft is made of a bell or lemon, then it's
measured. There are two kinds of drivetrains that are metric that are the
German style (Walterscheid trademark) in addition to Italian style (Bondioli
and Pavesi). The German shaft/tubing features an asymmetrical star and lemon
profile and the Italian is a bell shape.

PTO Domestic North American Tubing Shape PTO Metric Tubing Shape PTO Tubing
Shape Bell Italy

What is the series of that is the system for transmission?
A reliable method to determine which PTO series you are using is to measure
two times of the bearing and cross located on the tractor side on the
drivetrain. Make use of a caliper for measuring the outside diameter of your
U-joint's cover. This is similar to measuring the inside of the yoke and
lug.

Then, take a measurement of the u-joint from both directions. Utilize the
cross - and bearing chart in order to compare these measurements. It is easy
to determine the other PTO components needed or the entire drivetrain
needed.

PTO shaft for Agricultural Gearbox
The PTO shaft a sophisticated mechanism that permits implements to use
energy generated by an engine. It is an agricultural gearbox that is
mechanical. PTO shafts are a type of mechanical agricultural gearbox. PTO
shaft is able to be mounted on the transmission of a vehicle, and is an
integral part of the overall system. A top-quality PTO shaft is one that's
durable enough to withstand torsion as well as limit vibration. HZPT makes a
broad range of sturdy PTO shafts designed that can meet your demands. A
Agri-related gearbox is also available. Contact us now!

Why should you select Us?
Rough forgings
All yokes are constructed of premium steel that is forgered. Longer life
span as compared to casted.
Customized plastic cover
The latest plastic materials, high breaking strength, resistance to
temperatures below -20 degrees as well as color and printing.

It is easy to lubricate
The lubricating Nipple is secured through painting, making it visible

Guard your engine from damage
A shear bolt from that torque limiter will be tested in accordance with the
torque required.

Minimum Order: 50 pieces
