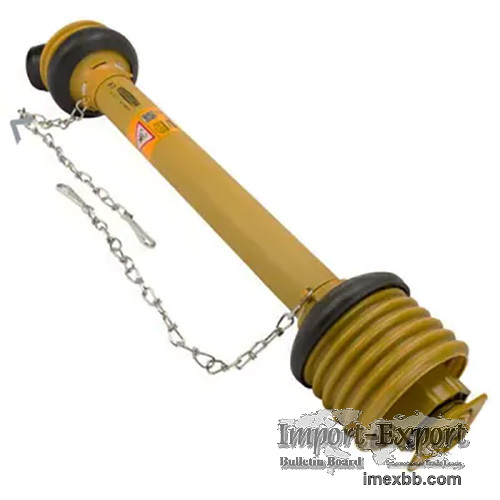

W 2200 Series PTO Shaft Replacement of Walterscheid

W 2200 series PTO Shaft Replacement of Walterscheid
The frequency of lubrication varies ranges from 50-100 hours
Meeting the requirements set out in EC 993/392 EEC
Fully compliant with EN12965 safety standard
CE mark available
Max. dynamic capacity of 540 RPM: 20 kW 335 Nm
Max. dynamic capacity, 1,000 RPM: 31 kW 295 Nm
Values at 5deg angle at work and service life of 1000 hours
Specifications Of W 2200 Series PTO shaft
Connection outside diameter on tractor side 1 3/8 Inch
Connector number of splines/grooves on the tractor side 6
It consists of
Pto shaft with slip clutch and shield K32B (60 daNm)
Declaration of conformity
Instruction manual
Type of locking on tractor side Collar lock
Attachment side of tractor Quick unhook yoke
Connection O machine side 1 3/8 Inch
The number of connections for splines/grooves is determined by the machine
side 6
Type of locking is locked by machine side Collar lock
Attachment machine side Radial pin clutch
Size code W2200
Length 710 mm
Power per 540 rpm 20 kW
Power per 1000 rpm 31 kW
Capsular diameter for the cross-joint on the tractor side 24
millimeters
The length of the cross joint on the tractor side. 61 millimeters
Cap diameter for cross-joints side 24 millimeters
Cross joint length machine side 61 millimeters
Clutch type K32B
Max torque for clutches 600 N*m
Outer tube profile 1
Wall thickness of the tube's outer wall 3 mm
Outside tube large outside diameter 48 millimeters
Profile of the inner tube Ov
Wall thickness of the inner tube 4 millimeters
Large diameter outside of the tube 40 millimeters
Shape of the profile tube
Lemon

Max static torque 1850 N*m
Parts of the Tractor's PTO Shaft, and Replacement Parts
A tractor's PTO shaft When you're seeking a complete set we've got you
covered. We provide a variety of Italian and North American designed PTO
driveshafts that are in dimensions and the spline configuration that you
require.
CV PTO Assemblies This CV (Constant Velocity) PTO shaft is utilized with all
tractor and equipment. These devices help to balance the power input and PTO
shaft power of the tractor in order to give greater stability when they are
engaged.
Cross and Bearing Kit: The Cross and Bearing Kit is the universal joint
which forms the core of the PTO driveshaft system. This is the source where
power is distributed from PTO component to equipment connected.
Half-Shaft Assemblies We have a large selection of both 48" as well as 60"
Weasler Axle PTO assemblies. The shaft's center and end length assemblies
are offered in rectangular and square designs.
Extra Components In the event that your PTO shaft components start showing
signs of wear, you can save the cost of new parts by replacing each
component. We offer a wide selection of new guards and bearings, both outer
and inner tubes pins, yokes as well as universal clutches.

What is the PTO Shaft function?

A lot of agricultural equipment is not independent power. This is the place
where the tractor PTO is a key component.

Every end on the PTO shaft is connected to the machine and tractor. It is
connected to the tractor PTO shaft can be operated by the use of a switch,
and it is able to rotate between 1000 and 540 RPM dependent on the machine.
When the switch is engaged it draws torque and power from tractor's
transmission to provide your equipment with the proper amount of power
needed to get the job done.

PTO shafts are available in a variety of sizes. You'll need to locate one
that is compatible with the coupling that's on the vehicle you're towing.
Connecting your tool to the tractor shouldn't be a problem. If you must lift
the device off of the ground to connect the shaft , or if your shaft's
length is excessive, pushing the connection could cause damage to both. If
you already have a PTO shaft it is easy to determine the length. Close it,
and determine the length from the PTO yoke to the yoke.

PTO Shaft as well as Agricultural Gearbox
Agri-related gearbox and PTO shaft parts collaborate to transfer power
mechanically between the farm tractor. The PTO shaft converts the energy of
engines in hydraulic pressure. This is the reason why the tractor can carry
massive loads. If it's functioning properly it minimizes the risk of injury
to the tractor as well as to the driver. If it is used correctly it can be
an essential part of a tractor however, it is also susceptible to becoming
inoperable. When selecting an agricultural gearbox take into consideration
the longevity and the mechanism of the item and its components. A sturdy
gearbox will last for years and will avoid the need for frequent
replacements. A good agricultural gearbox is durable for a long time And you
do not wish to have to replace it after a few years. This could be costly
therefore, you must consider your needs when buying an agricultural gearbox
or PTO shaft. HZPT is able to provide PTO shafts, agricultural gearboxes,
and more at wholesale cheap cost! Contact us today if you are interested!

Why should you choose our company?
We have more than fourteen years' worth of spare part experience, with a
particular focus on parts for drivetrains. We are heavily involved in the
auto parts industry in Hangzhou which is the largest manufacturer of import
part in China. We supply products with high quality and performance for
different clients from around the world. We have a strong relationship with
local suppliers with a win-win-win-win-win-win-win-win-. The factory
provides quality and quick products. We offer fast and high-quality service.
Customers are provided with high-quality products and excellent service for
their clients.

It's a healthy , powerful triangular equilateral triangle that keeps
Hangzhou Circuit running.

We are among the top wholesalers and manufacturers of PTO spare parts for
both heavy and light vehicles. Produced with the most advanced technology
and top-quality material, we provide items in a range of shapes, sizes and
designs as well as capacities. Our products are renowned for their low
maintenance and we offer the products in a cost-effective and long-lasting
way. This is why these items are offered based on the details provided by
the client.

Minimum Order: 50 pieces
