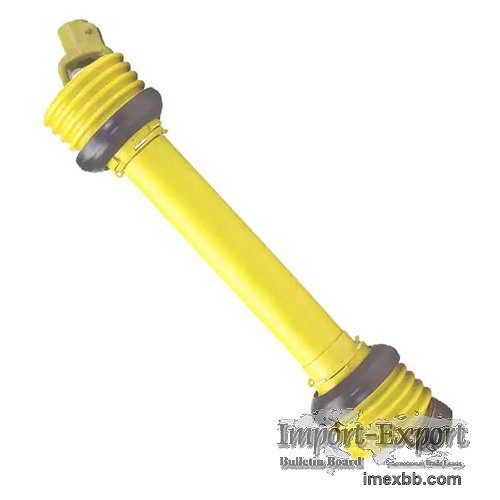

W 2400 Series PTO Shaft Replacement of Walterscheid

W 2400 Series PTO Shaft Replacement of Walterscheid

A PTO shaft is a device that transfers power of your tractor into
attachments powered by a PTO driven attachment. This allows the tractor to
provide power to a variety of tractor-powered equipment, including flail
mowers and wood chippers excavators, rotary tillers and much more.

Make sure that the torque of the drive is transferred to the elements that
drive the machine for replacement of damaged or worn out components during
restoration and repair work.
A product that consists from a beam central to the beam as well as two forks
that pivotally connect to each end of the beam. This connects the shafts to
allow the transmission of torque between shafts having significant shaft
rotational shifts (up up to 40-40 deg) which change with their rotation.

PTO Shaft Parts and Components
The HZPT's PTO shafts and parts ensure that your equipment is running. We
are a top manufacturer of PTO shafts, we have various standard, metric , and
constant velocity drivetrains and PTO shaft components as well as assemblies
(implement PTO shaft yokes, PTO shaft clutch as well as PTO shaft tubing).
HZPT has a wide selection of tractor PTO shaft drivetrains. We provide drop-
in drivetrains and other components for replacement which offer an easy
option for customizing or fixing your application.

Tractor Yoke The Cross & Bearing Kit Shaft Shaft Weld Yoke
Slip Sleeve Tube Tube The Weld Yoke implement Yoke
Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard &
Guard Bearing
PTO Drive Shaft Types
There are two kinds of PTO shafts. Anyone who owns a tractor has to be aware
of the PTO shaft model on their tractor. It is difficult to see the
necessity of identifying the PTO shaft until they requires replacement of
the worn-out PTO shaft. Let's talk about both PTO shaft types, and then show
how easy it is to identify the different types of shafts. One PTO shaft is
referred to as the domestic type, while the second one is commonly referred
to as the standard.

You can distinguish the different types by their shapes. The common PTO
shaft has four forms: square, round, rectangle and splined. Metric PTO
shafts are made up of three forms, including bell, star and football.

Domestic PTO shafts are widespread throughout North America, so the shaft
design is generally associated with North America. It is believed that the
Metric PTO shafts that have balls and stars are thought to originate from
Germany. A Metric PTO shaft that has an oblong shape is thought to be
attributed to Italy. Each PTO shaft design (shape) is made up of several
models, which differ in PTO length and length. After identifying the type of
shaft it is possible to measure the End of the cap from another at the U-
joint as well as the diameter of the cap's exterior. cap bearing to
determine the series of the shaft.

How to Attach the PTO shaft onto Tractor?
PTO shaft injuries are one of the most frequently occurring and devastating
cause of injuries resulting from tractor accidents. Before operating the
tractor or installing PTO shaft parts, be sure to read and adhere to every
safety rule and best practice from the operator's manuals for the tractor
and implement. Make sure that all shielding and other components of the
tractor and PTO shaft parts are safe and in working state. Don't work on the
tractor or implement PTO shaft components when the tractor engine is in
operation or while any component that is part of the PTO shaft-powered
equipment is in motion.

When connecting the PTO drive shaft of an implement to the rear PTO shaft on
the tractor in order to do this, you must simultaneously lift an tool's
massive PTO shaft. In addition, you need to place the PTO driveline splines
as you pull back the implement's PTO neck release or pressing the pin lock
release while slidgin' the shaft of the implement into the tractor's PTO
shaft. It may not seem easy.

To make this difficult job easier, follow the tips and tricks of skilled
tractor operators. (Wearing gloves when performing PTO shaft connection is a
clever tip to prevent scrapes and cuts.)

Make sure everything is in order to allow the PTO shaft to occur (reading
the tractor's and operations manuals is essential to knowing the correct
settings for the two machines). Many tractors let you set your PTO shaft of
the tractor in the neutral position. This will ensure that the tractor's PTO
output shaft can spin freely, which makes aligning the shafts' splines
simpler.

If you're attaching a 3-point mounted implement be sure you have the 3 point
hitch set in the fully down position so that it is not being crushed
accidentally if someone were to move the lever of the position in error. The
hitch and the implement could reduce even when the engine is off. If you're
unable to achieve your PTO shafts aligned with your 3-point tool when in the
fully-down position, you may have to take the drawbar off. In most cases,
removing the drawbar is an ideal option for PTO shaft-powered 3-point tools.
This will prevent damage to the PTO shaft by the shaft hitting the drawbar
once the implement is dropped to the limit of lower travel for the 3-point
hook. Verify the distance between your PTO shaft as well as the drawbar
prior to when you begin to use the PTO shaft-powered 3-point tool.

In the event that your tractor's PTO shaft doesn't have a neutral setting ,
and the shaft is locked even when the engine is shut off. In that situation
you may need to connect the equipment to 3 points, lift it and secure it to
the extended position prior to shutting down the tractor this wayyou'll be
able to turn the shaft of your implement to make sure the splines are
properly aligned. Be extra careful to keep fingers from the PTO universal
shaft since there might be some energy behind the shaft's movement.

Then to both PTO shaft ends must be in good condition. Splined shafts that
are dry and dirty are nearly impossible to join. Splined PTO shafts are made
to ensure a tight fitting. A tiny bit of soil grit or even some plant debris
can hinder them from sliding.

Then, lightly coat them with grease, allowing the two pieces of metal slide
in. Clean oil that comes from a clean source is preferable, however the
tractor operators who are experienced can come up with improvised solutions
on the spot. After lubrication both shafts will slide faster.

It is important to note that the PTO shaft connect is too far from the
ground when using compact tractors and their equipment. It is possible to
kneel in order to manage this PTO shaft's connections. While kneeling,
carrying the load of an PTO shaft will be faster when you're sitting on a
surface that is suitable. A floor mat for your car or carpet or cardboard
can ease the strain on your knees when you are connecting to the PTO shaft.

When the splines have been aligned when they are aligned, push the locking
pin button or pull the collar of the ball lock and then slide the shaft into
the PTO shaft. If it's not able to slide, occasionally you can jiggle the
end of the PTO shaft upwards and downwards can help to get it moving.

After you have started, turn the shaft onto the collar - you might hear a
click and the button will return to its original position, or the collar
will move forward. To make sure that the lock on the shaft is properly
settled, pull back the shaft using your hands off of the button or collar
and it should be difficult to pull off.

By following these easy steps, you will be able to create PTO shaft hookups
more efficient and speed up the process of getting the job done.

Minimum Order: 50 pieces

Click to Enlarge
