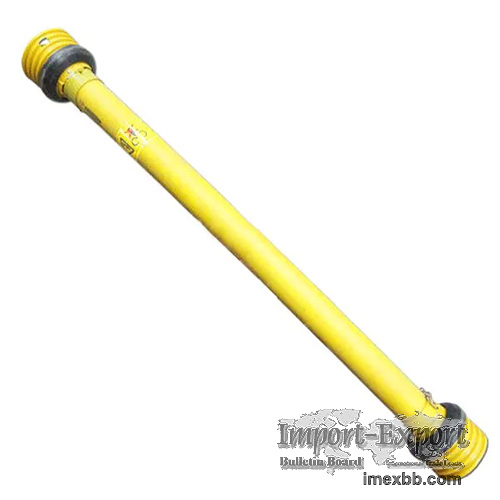

W 2500 Series PTO Shaft Replacement of Walterscheid

W 2500 Series PTO Shaft Replacement of Walterscheid
Applicant range

Harvesters
Soil cultivation machinery
Wood shredders
Properties:
Tractor-side 1-3/8" (6) shaft collar kit
Machine side: flange O 160
A time interval for lubrication ranging from fifty to one hundred hours
Meets EC EEC 89/392 requirements. EEC requirements
Conforms to EN12965 safety standard
CE mark available
Technical details:
See Walterscheid instruction manual
Max. dynamic capacity, 540 RPM: 66 kW 1175 Nm
Max. dynamic capacity at 1000 RPM: 102 kW, 975 Nm
Values at 5deg working angle and service life of 1000 hours
LZ = length of slid-in in millimeters, starting between intersections
Specifications Of W 2500 Series PTO shaft
Connection outside diameter on tractor side 1 3/8 Inch
The number of splines/grooves connected by the tractor side 6
It consists of
Pto shaft and guard tube
Declaration of conformity
Instruction manual
Type of locking on tractor side Collar lock
Attachment side of tractor Quick disconnect the yoke
The machine side locks the type of lock. Flange
Attachment machine side Flange yoke
Size code W2500
Length 710 mm
Power per 540 rpm 66 4 kW
Power per 1000 rpm The power of 102 watts
Capacity of the cross joint is of the tractor side 36 millimeters
Longest cross-joint length on the tractor side. 89 millimeters
Capacity of the cross joint machine side 36 millimeters
Cross joint length machine side 89 millimeters
Clutch type
n/a

Outer tube profile S5
Wall thickness of the outer tube 4,5 millimeters
Outside tube large outside diameter 61 millimeters
Profile of the inner tube S4
Large diameter outside of the tube 51 millimeters
Max static torque 6000 N*m

Minimum Order: 50 pieces
