Welded Wire Fence

Galvanized Steel Welded Mesh Fence Panels & Posts：1.2-2.4m High, 50x200mm Mesh
Welded mesh fences are constructed from galvanized steel wires that are welded
at each intersection for structural integrity, then powder-coated for enhanced
durability and aesthetic appeal. The panels typically come in standard heights
of 1.2 to 2.4 meters and widths up to 2.5 meters, with mesh apertures like
50×200 mm. These fences are paired with steel posts—round, square, or peach-
shaped—available in multiple colors such as green (RAL 6005), black, white, or
grey to match surrounding environments. Widely used for perimeter security in
residential, commercial, and public facilities, welded mesh fences offer a
clean appearance, weather resistance, and easy installation.

Type

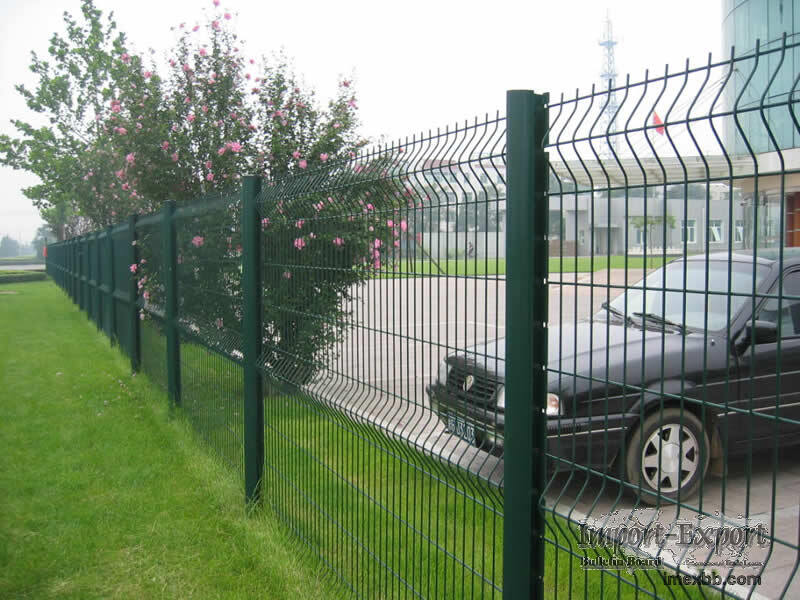

3D Curved Welded Mesh Fence (Triangle Bending Fence): Also referred to as a “V
mesh fence,” this variant is characterized by horizontal V-shaped curves that
provide enhanced strength and an improved look. Common technical details
include a wire diameter ranging from 4.0 mm to 5.0 mm, a mesh opening of 50 mm
by 200 mm, panel heights between 1.2 meters and 2.4 meters, and panel widths
reaching up to 2.5 meters. For British gauge conversions: 4.0 mm is
approximately 8 SWG, and 5.0 mm is roughly 6 SWG.
Double Wire Fence (Twin Wire Fence 868 / 656 Type): This type is built using
two horizontal wires (either 6.0 mm or 8.0 mm) and a single vertical wire
(either 5.0 mm or 6.0 mm), delivering superior stiffness. The mesh aperture is
50 mm by 200 mm. Heights typically vary from 1.2 meters to 2.4 meters. Note
that 6.0 mm equates to approximately 4 SWG, while 8.0 mm is around 1 SWG. It is
an excellent choice for sports enclosures and zones requiring high security.
Anti-Climb Fence (358 Security Mesh): Also termed prison mesh, this type is
distinguished by its compact openings measuring 12.7 mm by 76.2 mm, constructed
with 4.0 mm wire. Panel heights extend from 2.0 meters to 3.6 meters, with
widths between 2.0 meters and 2.5 meters. The tightly woven mesh is designed to
deter climbing and cutting. A 4.0 mm wire is equivalent to 8 SWG. It is often
treated with hot-dip galvanization and a powder coating for enhanced resistance
to corrosion.
