Welded Wire Mesh

Welded wire mesh is available in a wide range of mesh openings to suit
different applications. Smaller openings from 1/4" to 3/8" are used for fine
mesh applications such as small poultry cages, insect screens, and plaster
support. Medium openings from 1/2" to 3/4" are common for garden fencing,
rabbit cages, and light animal enclosures where the mesh needs to contain small
animals. Square openings such as 1" x 1" and 1" x 2" are used for general
fencing, warehouse partitions, and machine guards, providing good visibility
and moderate strength.
East of Weimin Street, Anping County, China
sales@bxwiremesh.com
+86-19134185927 +86-13184973926
WhatsApp: +86-19134185927
www.bxwiremesh.com

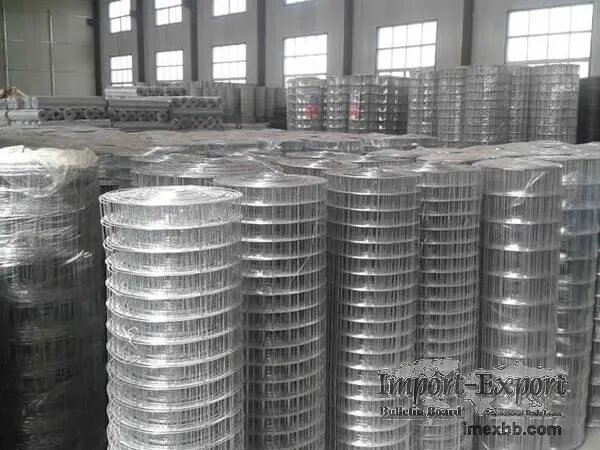

Welded Wire Mesh is made by welding low carbon steel wire, galvanized wire or
stainless steel wire at each crossing point. The mesh opening is fixed and the
sheet or roll keeps a flat shape during cutting and installation. It is used
for fencing, cages, machine guards, garden partitions, construction protection
and general industrial use. We can supply electro galvanized, hot dipped
galvanized and PVC coated welded mesh. Common roll length is 30 m. Roll width,
mesh opening, wire diameter and packing can be made according to order details.

Specifications
Material: Low carbon steel wire, galvanized steel wire, stainless steel wire

Mesh Opening: 1/4″ × 1/4″, 3/8″ × 3/8″, 1/2″ × 1/2″, 5/8″ × 5/8″,
3/4″ × 3/4″, 1″ × 1/2″, 1″ × 1″, 1″ × 2″, 1-1/2″ × 1-1/2″, 2″
× 2″, 2″ × 3″, 2″ × 4″, 3″ × 3″, 4″ × 4″

Metric Opening: 6.4 × 6.4 mm, 10.6 × 10.6 mm, 12.7 × 12.7 mm, 16 × 16 mm,
19.1 × 19.1 mm, 25.4 × 12.7 mm, 25.4 × 25.4 mm, 25.4 × 50.8 mm, 38 × 38
mm, 50.8 × 50.8 mm, 50 × 75 mm, 50 × 100 mm, 75 × 75 mm, 100 × 100 mm

Wire Diameter: Common light welded mesh uses BWG24 to BWG16. Fencing mesh
commonly uses about 1.65 mm to 2.67 mm wire. Heavier gauges available by order.

Welding: Longitudinal and cross wires welded at the crossing points

Edge Treatment: Cut edge or bent ends (confirmed by order)

Surface Treatment: Electro galvanized before welding, electro galvanized after
welding, hot dipped galvanized before welding, hot dipped galvanized after
welding, PVC coated

PVC Coated Type: Usually made from galvanized welded mesh or galvanized wire
core. Finished wire diameter depends on coating thickness.

Roll Width: Galvanized welded mesh usually 0.5 m to 1.8 m. PVC coated welded
mesh usually 0.5 m to 1.2 m.

Roll Length: Common 30 m per roll

Packing: Waterproof paper in rolls. Plastic film, carton or pallet packing can
be arranged by order.

Custom Size: Mesh size, wire diameter, roll width and packing can be made
according to buyer requirement.
