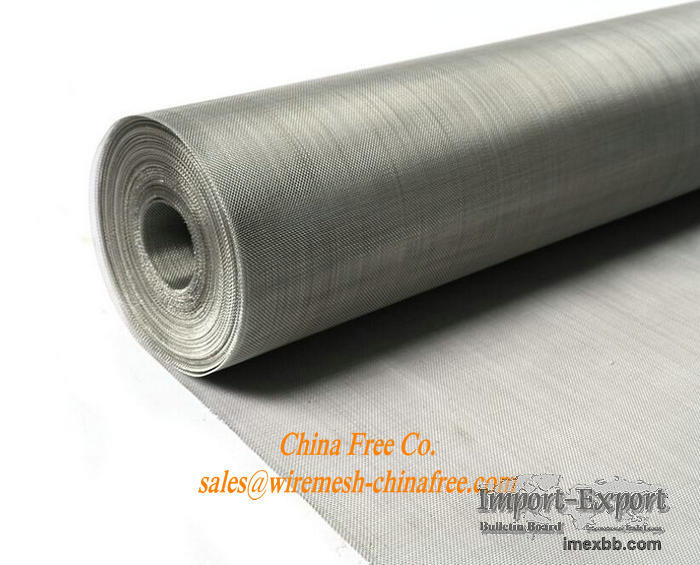

Wire Mesh 635 X 635 Mesh Stainless .0008" Wire Dia

Stainless Steel Wire Mesh products are generally made of SUS302, 304, 316, 316L
and 321.
Stainless steel has the good performances as wear-resisting, heat-resisting,
acid-resisting and corrosion resisting. stainless steel wire mesh is
extensively used in mining, chemical industry, food industry and pharmaceutical
industry.

Wire Mesh 635 X 635 Mesh information:
MESH SIZE: 635 per in, 635 per 2.54 cm
WIRE DIAMETER: 0.0008 in, 0.02032 mm
OPENING: 0.0008 in, 0.02032 mm
OPENING MICRONS: 20
OPENING %: 24 %
OVERALL THICKNESS: 0.0016 in, 0.0406 mm
WEIGHT/SQUARE FOOT: 0.0300 lb, 0.0136 kg

Here are three ways to weave stainless steel wire mesh:
Plain weave:
This is the most commonly used weaving type.
Each warp wire crosses alternately above and below each weft wire. Warp and
weft wires generally have the same diameter.
Twill Weave:
The wires of the weft and the warp intercross two above and two below,
inverting the intersections of the warp wire at an established distance and
obtaining a rigid, stable and robust type of wire mesh fabric.
Dutch Twilled Weaving:
The wires of the weft and the warp intercross two above with a larger weft wire
than the warp.
Such kind of wire mesh allows a greater difference between the diameter and the
number of weft and warp wire.

Minimum Order: 10 metres
