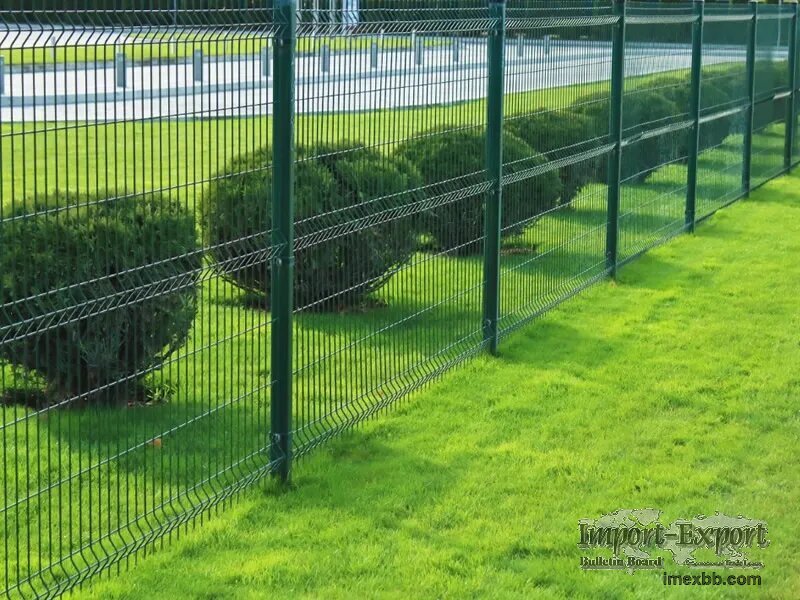

Wire Mesh Fence

Wire mesh fence is made from welded low-carbon steel wire (Q195 or Q235 by
order). It is used for gardens, residential compounds, factories, and public
facilities. The standard mesh opening is 50 × 120 mm, with panel widths of 2.0
m or 2.5 m, and heights from 0.6 m to 2.0 m. Available finishes include
electro-galvanized for indoor or light outdoor use, hot-dip galvanized for
long-term outdoor exposure, and PVC coated for colored visible sites.
East of Weimin Street, Anping County, China
sales@bxwiremesh.com
+86-19134185927 +86-13184973926
WhatsApp: +86-19134185927
www.bxwiremesh.com

Wire mesh fence is made from welded low-carbon steel wire (Q195 or Q235 by
order). It is used for gardens, residential compounds, factories, and public
facilities. The standard mesh opening is 50 × 120 mm (other openings by
order). Standard panel widths are 2.0 m and 2.5 m, with heights from 0.6 m to
2.0 m (taller sizes by order). Available finishes include electro-galvanizing,
hot-dip galvanizing, and PVC coating. For coated panels, the steel core is
approximately 3.2 mm and the finished diameter is approximately 4.0 mm (coating
thickness confirmed by order). Posts and fittings are supplied according to
panel height and installation requirements.

Specifications
Material: Low-carbon steel wire (Q195 or Q235 by order)

Production Method: Welded mesh panel

Mesh Opening: 50 × 120 mm (other openings by order)

Steel Core Diameter: Approximately 3.2 mm

Diameter After PVC Coating: Approximately 4.0 mm (coating thickness confirmed
by order)

Panel Width: 2.0 m or 2.5 m

Panel Height: 0.6, 0.8, 1.0, 1.2, 1.5, 1.8, or 2.0 m (taller sizes by order)

Surface Options: Electro-galvanized, hot-dip galvanized, or PVC-coated

End Treatment: Bent ends or straight ends (confirmed by order)

Fence Posts: Supplied according to panel height and fixing method

Fixings: Clips, brackets, and bolts subject to the selected post system

Packing: Panels and posts packed separately. Packing details are confirmed
before shipment.

Important: The final wire diameter depends on coating thickness. Core diameter
and finished diameter should both appear on the purchase order.
