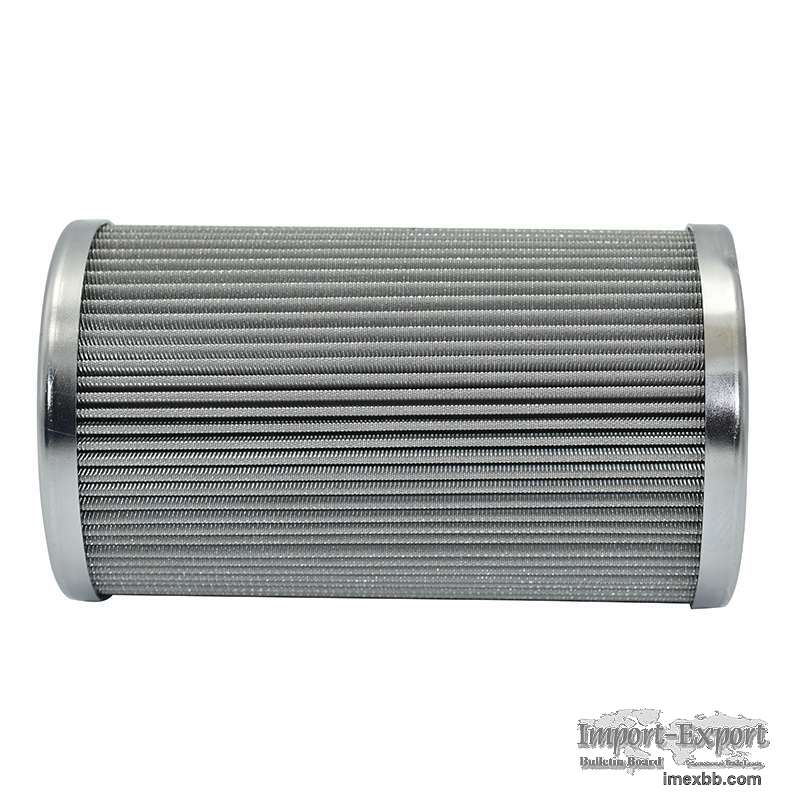

Wire Mesh Pleated Filter Strainer Overview

In filtration systems, the wire mesh pleated filter strainer stands out as a remarkable and
highly effective solution. This article will explore the various aspects of wire mesh pleated
filter strainers, including their construction, working principles, applications, advantages,
and more.



Construction of Wire Mesh Pleated Filter Strainer
Pleating Design
The pleating of the wire mesh is a key feature that differentiates these strainers. The
pleats increase the surface area of the filter media significantly.

This increased surface area allows for a higher flow rate of the fluid being filtered while
maintaining a high level of filtration efficiency. The pleat geometry can vary, with common
types including V-shaped, U - shaped, and more complex multi-fold designs. The angle and
depth of the pleats are carefully engineered to optimize the flow dynamics within the
strainer.

For instance, a shallower pleat angle may provide better particle capture in some
applications where the flow velocity is relatively low, while a steeper angle might be more
suitable for high-flow-rate scenarios to reduce pressure drop.

The pleating process also requires careful consideration of the bonding or fixing method. The
pleats need to be securely held in place to prevent them from collapsing or deforming during
operation. This can be achieved through techniques such as welding, gluing, or using
mechanical fasteners, depending on the materials and design requirements.

Wire Mesh Pleated Filter Strainer Hot sales Manufacturer

Applications of Wire Mesh Pleated Filter Strainer


1. Oil and Gas Industry
In the oil and gas industry, wire mesh pleated filter strainers are widely used in various
processes. In upstream operations, they are used to filter crude oil during production. The
strainers can remove sand, silt, and other solid particles from the crude oil, preventing
damage to downstream equipment such as pumps, valves, and pipelines. In refinery processes,
wire mesh pleated filter strainers are employed in the filtration of intermediate products
and final products. For example, they can filter fuel oils to remove impurities that could
affect the combustion efficiency of engines. They are also used in the filtration of
lubricating oils to ensure the smooth operation of mechanical components in refinery
equipment.



2. Chemical Processing
Chemical plants rely on wire mesh pleated filter strainers to filter various chemical
solutions. In the production of pharmaceuticals, these strainers are used to remove
particulate matter from raw materials and intermediate products. This is crucial to ensure
the quality and purity of the final pharmaceutical products. In the production of industrial
chemicals, such as acids, alkalis, and solvents, wire mesh pleated filter strainers are used
to filter out solid impurities that could cause contamination or affect the chemical
reactions. The ability to handle corrosive chemicals is an important consideration in these
applications, and the use of corrosion-resistant materials like 316 stainless steel wire mesh
is common.



3. Water Treatment
In water treatment facilities, wire mesh pleated filter strainers play an important role in
the pretreatment of water sources. They can remove suspended solids, debris, and large-sized
particles from raw water before it undergoes further treatment processes such as
sedimentation, filtration through sand or activated carbon, and disinfection. In industrial
water systems, these strainers are used to protect cooling towers, boilers, and other water -
using equipment from clogging and damage caused by particulate matter. They can also be used
in wastewater treatment plants to remove solids from the wastewater stream before further
treatment steps such as biological treatment.



4. Food and Beverage Industry
In the food and beverage industry, wire mesh pleated filter strainers are used to ensure the
purity and quality of products. In the production of beverages like beer, wine, and fruit
juices, these strainers can remove yeast cells, pulp, and other solid particles. In the dairy
industry, they are used to filter milk to remove any foreign matter or impurities. The food-
grade materials used in the construction of wire mesh pleated filter strainers in this
industry ensure that there is no contamination of the food products. The strainers are
designed to meet strict hygiene standards and are often easy to clean and sanitize.



5. Automotive and Aerospace Industries
In the automotive industry, wire mesh pleated filter strainers are used in fuel filtration
systems to remove contaminants from gasoline and diesel fuels. This helps to improve the
performance and lifespan of fuel injectors and engines. In the lubrication systems of
vehicles, these strainers are used to filter out metal particles, dirt, and other debris that
could cause wear and tear on engine components.

In the aerospace industry, wire mesh pleated filter strainers are used in fuel systems,
hydraulic systems, and lubrication systems of aircraft. The high - -reliability and precision
filtration requirements in these industries make wire mesh pleated filter strainers an

ideal choice.



6. Miniaturization and Microfiltration Applications
There is a growing demand for miniaturized filtration systems in fields such as medical
devices, electronics manufacturing, and biotechnology. Wire mesh pleated filter strainers are
being developed in smaller sizes with more precise filtration capabilities for these
microfiltration applications. The ability to filter particles at the nanometer or micrometer
scale with high efficiency will open up new opportunities for the use of wire mesh pleated
filter strainers in these emerging industries.

Wire Mesh Pleated Filter Strainer Exporter

Advantages of Wire Mesh Pleated Filter Strainer
1. High Filtration Efficiency

The combination of the wire mesh material and the pleated design results in a high filtration
efficiency.



2. Large Flow Capacity

Thanks to the pleated design, wire mesh pleated filter strainers can handle relatively high
flow rates compared to non-pleated filters of similar size.



3. Durability and Long Service Life

The use of high-quality materials, such as stainless steel wire mesh, and the robust
construction of the strainer contribute to its durability.



4. Easy Maintenance

Wire mesh pleated filter strainers are relatively easy to maintain.



5. Cost - Effectiveness

When considering the long-term performance and durability of wire mesh pleated filter
strainers, they offer a cost-effective solution.
