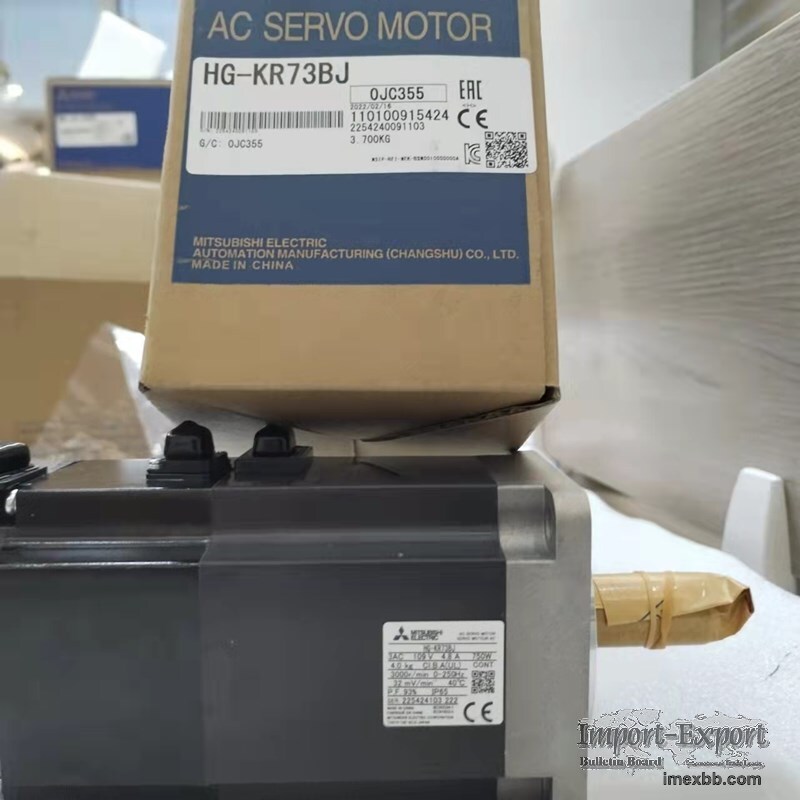

With Oil Seal V10 Vibration Level HG-KR73BJ Motor Manufacturer Mitsubishi

continuous characteristic] rated output 750W, rated torque 2.4 N.m

[maximum torque] 8.4n m

[rated speed] 3000r / min

[maximum speed] 6000r / min

[instantaneous allowable speed] 6900r / min

[power ratio at continuous rated torque] standard 45.2kw/s, 41.6kw/s with
electromagnetic brake

[rated current] 4.8A

[maximum current] 17A

[inertia J] standard 1.26, with electromagnetic brake 1.37

[recommended load inertia ratio] less than 25 times

[speed and position detector] absolute position and increment share 22 bit
encoder (resolution per revolution of servo motor: 4194304pulses / Rev)

[oil seal] Yes

[heat resistant glass] 130 (b)

[structure] totally enclosed self cooling (protection grade: IP65)

[vibration level] v10

[allowable load of shaft] l 40mm, radial 392n, axial 147n

[weight] standard 2.8kg, with electromagnetic brake 3.8kg




Hg-kr43bj electromagnetic brake specification

[form] non excitation action type (spring braking) safety braking

[rated voltage] DC24V (- 10% ~ 0%)

[power consumption] 10W

[coil resistance] 57.0 Ω

[inductance] 0.13h

[static friction torque of electromagnetic braking] 2.4n m

[release delay time] 0.04 seconds

[braking delay time] DC cut-off 0.02 s

[allowable braking energy] 64j per braking and 640j per hour

[service life of electromagnetic brake] 20000 times of braking, 22j of single
braking

Minimum Order: 1 pieces
