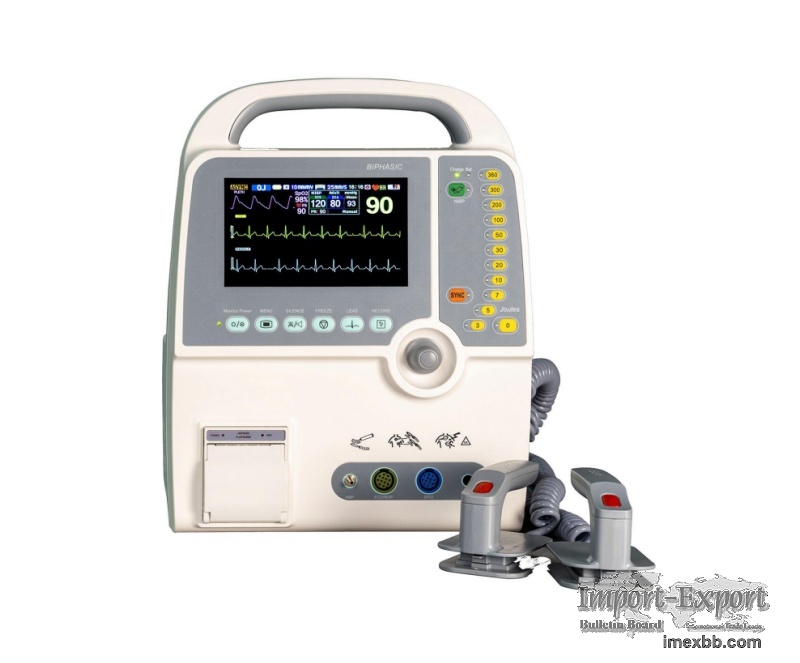

WMV500C Biphasic Defibrillator Monitor

Standard:
Manual DEFIB ●ECG ●NIBP ●SPO2 ●PR ●Record ●Battery ●Voice Prompt
Optional: AED
Specification
Display
Screen Type:High-resolution display, TFT colour display
Screen Size: 7 inches (17.7cm) diagonally
Sweep Speed: 12.5/25/50mm/sec
Information: Heart Rate,Nibp,Spo2,Temp, Delivered Energy
Resolution:800X480
ECG
Patie , nt Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
Lead Selection: Displayed on monitor, paddles, I, II, III,AVR, AVL, AVF, V.
ECG Size: 2.5,5, 10, 20, 30 mm/mV display on monitor.
Heart Rate: 20-350BPM.
Protection: With stand 4000vAc/50Hz voltage in isolation and work against
electrosurgical knife and defibrillation
NIBP
Working Mode: Manual/Automatic
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temp.
Measurement range 0~50℃
Resolution 0.1℃
Pulse Oximetry（Spo2）
Display ：Spo2 value, waveform, Pulse
Range：0~99%for adult, pediatric and neonatal patients
Probe ：Standard adult finger clip
Optional pediatric Y-type clip and neonatal wrap
Pulse Oximetry（Spo2）
Display ：Spo2 value, waveform, Pulse
Range：0~99%for adult, pediatric and neonatal patients
Probe ：Standard adult finger clip
Optional pediatric Y-type clip and neonatal wrap
Defibrillator
Waveform: Biphasic
Defibrillator type: Manual External Synchronous/Asynchronous Defibrillation.
Charge Time: Less than 10 seconds to 360 Joules
Energy Display: Monitor display indicates both selected and delivered energy.
Charge Prompt Type: Voice and visual prompts.
Energy Selection: Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360
joules
Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric
paddles integrated)
Battery Description
Standard Type: Li-ion battery Li1104c 11.1Vdc 4000mAh X2
Standard Capacity: Up to 10 hours ECG monitoring or 60 full-energy discharges.
Low Battery Indicator: Flashing low battery icon on display and Bat.Indicator on
the panel of defi-monitor be on
Recharge Rate: 80% in 3 hours. 100% in 5 hours.
Built-in Recorder
Paper: 50mm thermal.
Printing Method: High-resolution, thermal print head.
Record date, time ,sweep speed, waveform gain, heart rate, energy (joule) and ECG
waveform
Print mode  HR exceed limits alarm recording  Auto timed recording  Real-Time
Recording  Defibrillation discharge trigger recording
Power
AC-DC dual-use: Use the batteries,AC100V~240V,50/60 Hz.
Vehicle Voltage(Option): DC 12V
Main unit:
Portable
Maximum power 600W
Dimensions:L320xW205xH410
Weight:7. , 5kg
AED (Optional)
Voice prompts and screen prompts.
Energy Programmable Sequence: 200,300,360 Joules; 150,150,200 Joules; 50, 75, 100
Joules; 30, 30, 50 Joules;
Discharge Control: Control on device front panel.
