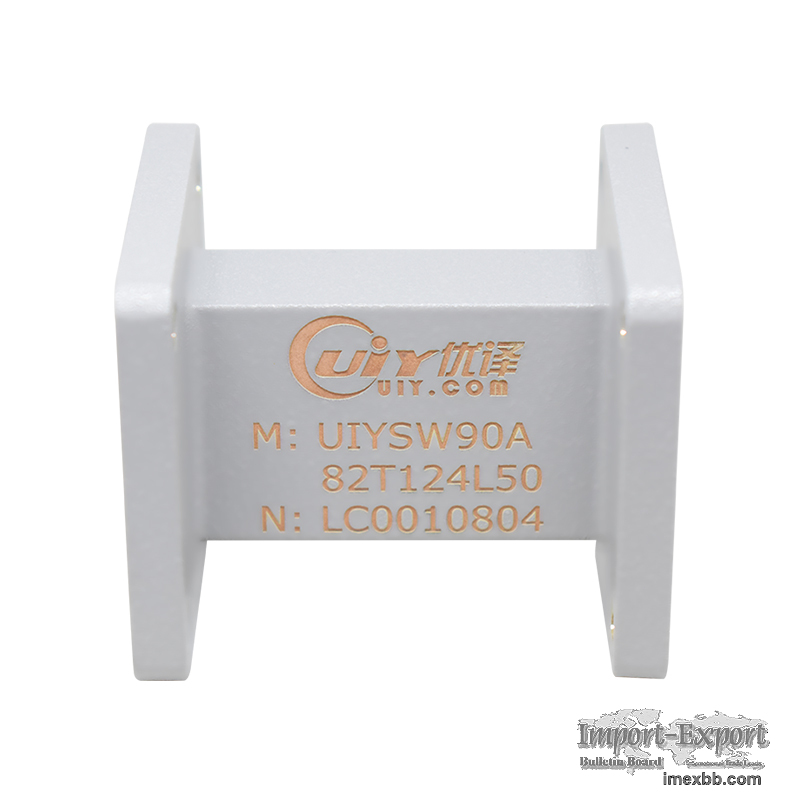

X Band Straight Waveguide 8.2~12.4GHz WR90 SMA Female

Model Number: UIYSW90A82T124
Frequency Range: 8.2~12.4GHz
Insertion Loss:0.4dB
VSWR:1.1
Connector Type (Waveguide): WR90
Connector Type (Coaxial): SMA Female
CW Power: 100W
Peak Power: 3KW
Temperature: -55~+85℃
Frequency range 0.32 to 112GHz.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.

Minimum Order: 1 pieces
