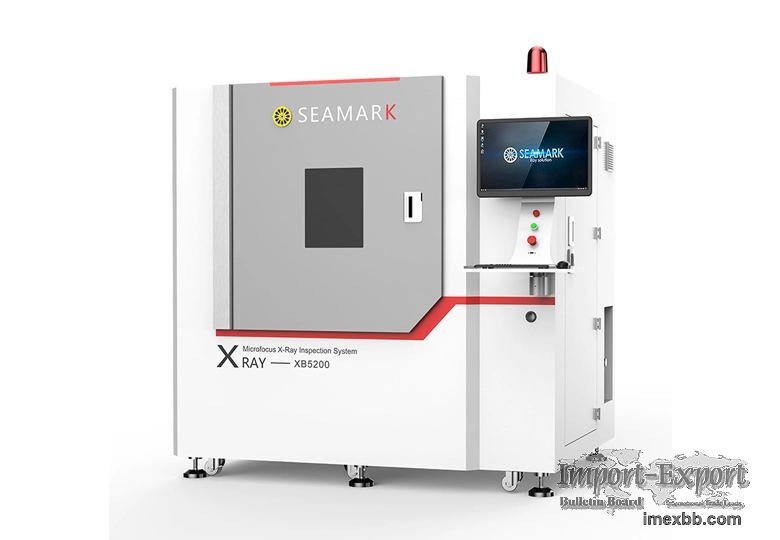

X-ray Inspection Machine for Stacking Battery

Seamark stacking battery industrial digital x ray inspection systems are suitable
for the inspection of stacking (blade) process-type cells in the lithium battery
industry and can adopt TDI line scanning technology and expandable inspection
functions such as plate fold and tab fold. Seamark has 2 kinds of industrial
digital radiography equipment, inline and offline. Customers can choose the
suitable product according to different requirements.

Types of Stacking Battery X-Ray Inspection Machine
Offline Inspection Machine for Stacking Battery
Various stacking process types of batteries can be inspected by using the Seamark
offline stacking industrial radiography equipment. Random inspections are
frequently conducted using offline inspection equipment. It uses an advanced FPD
and professional Hamamatsu X-ray tube, which may assist the operator in acquiring
a clear image of the samples and making the right decisions. In some labs and
small battery manufacturing businesses, it is commonly used.
Inline Inspection Machine for Stacking Battery
Seamark's XB7200 inline stacking battery X-ray inspection machines offer automatic
inspection for multi-layer stacking power batteries. Using advanced imaging
technologies, it assesses aspects like weighing, folds, and creases, ensuring
high-quality stacking batteries vital for the new energy car industry's reliable
performance.
Advantages of Using SEAMARK's Stacking Battery X-ray Inspection Machine

Adopt the Advanced X-ray Tube
Seamark values the collaboration and R&D with the world's leading manufacturer of
X-ray tubes. It adopts the Hamamatsu X-ray tube, which is one of the best
industrial X-ray tube manufacturers around the world.

High Dynamic Multi-fusion Filtering Algorithm
High dynamic: Breaking through the limitations of X-ray tubes.

Fit: The model is more stable.

Multi-fusion: multi-operator fusion.

Clarity: Large image quality.

Professional Teams
Professional R&D department and after-sales service engineers group provide you
with patient and professional technology support to make sure customers use
equipment efficiently and easily.
What Is a Stacking Battery X-ray Inspection Machine?
What Is a Stacking Battery X-ray Inspection Machine?
The stacking battery X-ray inspection machine is specialized equipment designed to
assess the internal structure of stacking batteries. It plays a crucial role in
inspecting various parameters like overhang, plate fold, tab fold, and large area
fold, all of which are essential indicators of battery quality. Utilizing advanced
technology, this machine incorporates an X-ray tube and an FPD/TDI camera,
enabling it to generate clear and detailed images. These images are instrumental
in revealing the intricate internal structure of different battery samples. By
providing precise insights into the quality of batteries, this inspection machine
ensures the production of reliable and high-performance stacking batteries for
various applications.
Stacking Battery Offline Inspection Machine VS Inline Inspection Machine

Offline Inspection Machine
This kind of equipment is typically used for sporadic checks and is appropriate
for laboratories or batteries without stringent production standards. It can
assist the battery manufacturer in making an informed decision and save time.

Inline Inspection Machine
In the fully automatic battery production line, this kind of equipment is often
used for a thorough inspection, making it perfect for manufacturers who are
demanding quality control. It ensures that all products meet standards.

If you are looking for a reliable x ray inspection system factory, don't hesitate
to contact us!
