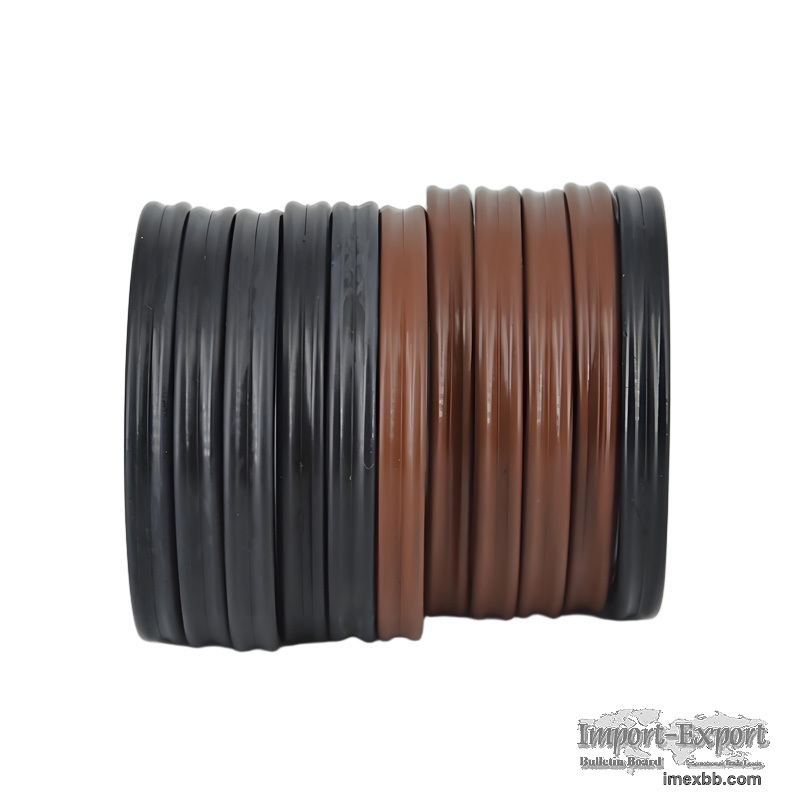

X Ring Seal for Hydraulic Pneumatic and Rotating Equipment

In the world of industrial sealing, X-ring seals, sometimes called quad-
rings, have quietly become a preferred choice in many demanding
applications. At first glance, they may look like a slightly flattened
“X,” but that shape is precisely what gives them their unique sealing
properties. Compared with traditional O-rings, X-ring seals offer improved
stability in both static and dynamic conditions, particularly where
repetitive or rotational motion is involved.

The four-lobed design creates multiple contact surfaces that help maintain a
consistent seal, even under fluctuating pressures or frequent movement.
These surfaces also retain lubrication better than a standard O-ring,
reducing wear and extending the seal’s effective life.

Materials and Suitability

X-ring seals come in a variety of materials, chosen according to the
application: nitrile rubber (NBR) for general hydraulic or pneumatic
systems; fluorocarbon (FKM/Viton®) for high-temperature or chemical-
resistant applications. Each material behaves differently depending on
temperature, fluid compatibility, and mechanical stress, so distributors
often consult with customers to select the right type. In practice, having
multiple materials in stock allows faster response to client needs without
long lead times.

Where X-Ring Seals Are Commonly Used

In hydraulics, X-rings are frequently found in cylinders, valves, and
actuators. Their structure reduces the risk of twisting or extrusion under
repeated pressure cycles, which can be a problem with standard O-rings.
Pneumatic systems also benefit, as the multiple lips reduce gas leakage and
help maintain consistent pressure in actuators and control valves.

Rotating machinery is another area where X-rings excel. They can be used on
shafts, pumps, gearboxes, and motor housings to prevent lubricant loss and
block contaminants. Unlike some standard oil seals, X-rings fit into smaller
grooves and maintain sealing performance even under moderate eccentric loads
or vibration. Many manufacturers are starting to include X-rings as a
standard component in machinery to improve reliability without redesigning
housings.

Installation and Handling

Even though X-rings are small components, installation still matters. The
groove must be clean and free of burrs, and applying a light layer of
compatible lubricant helps reduce friction during assembly. Oversized
stretching or twisting during installation can damage the sealing lips and
lead to premature failure. In many industrial settings, maintenance teams
periodically check seals for wear, hardness, and deformation, ensuring the
equipment continues to operate reliably.

As automation and high-precision equipment continue to develop, the demand
for reliable, low-friction seals grows. X-rings offer a practical solution,
balancing durability, compatibility, and cost. Suppliers who can provide a
variety of materials, accurate sizing, and responsive stock management are
best positioned to serve the industrial market.

Seals may be small components, but their role in system reliability is
significant. Selecting the right X-ring, understanding the operating
environment, and proper installation are all critical. In the end, a well-
chosen X-ring can quietly ensure that complex machinery continues to
function efficiently and safely.
