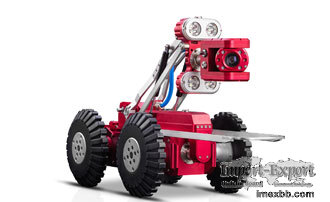

X5-HS CCTV Inspection Crawler

X5-HS is a high-definition pipeline CCTV inspection robot. It can use a tablet,
a laptop or a dedicated industrial controller as the main control, freely
choose wireless or wired connection and control, and display and store high-
definition inspection videos in real time.

X5-HS CCTV Inspection Crawler Main Parts
X5-HS Crawler
Suitable for pipe DN300-3000
6-wheel-drive
IP68 up to 10m water depth
Include pressure sensor, inclination sensor, roll and pitch sensor
Power supply: cable reel
Motor: 2x90W DC Speed: Max 32m/min Inclination: Max 45°
Light source: forward light 12X10W LED; backward 2X10W LED
Working ambient temperature: -10℃~50℃
Material: Brass nickel-plating stainless steel
Compatible with X5-H series camera
Dimension( LxWxH): 580x175x225mm
Weight: about 18.5 kg

Cable Reel
Cable length: 150m
Motor-driven
4-pin cable, drawing anti-Kevlar 300 kg, imported polyurethane sheath, cable
diameter <6mm, waterproof, wear, acid, corrosion.
Cable retracting automatically or manually
Accurate cable counter, devition within 1mm
Compatible with Easy-Sight X5-H series crawlers and X4 sonar inspection system
Protection class: IP63
Dimension( LxWxH): 570x395x475mm
Weight: about 67 kg( with 300m cable)

Main Controller
The main controller is pre-installed with PipeCCTV pipeline inspection and
evaluation report software, which can control and operate the robot, video
surveillance and recording, fill in the inspection records on site and
interpret by screenshots, automatically evaluate, calculate and output
inspection and evaluation reports that meet industry standards and local
standards. It equipped with PipeSight pipeline inspection video evaluation
report software, which can perform playback interpretation and evaluation
report output, and archive output data according to project classification, for
archiving or GIS system data connection. Besides, it equipped with PipeTracer
pipeline detection positioning and tracking software, Draw pipe bottom slope
curve and pipeline path curve in real-time measurement, and can derive
longitudinal section diagram of pipeline deposition status.

HD P&T Camera
Pixel quality: ≥2 million pixels
IP68 up to 10m water depth
Working ambient temperature: -10℃~50℃
Light source: 4x 3W LED light
The radial rotation 360°,horizontal rotation ±135°,one click to reset
10X optical, 12X digital
Laser measurement for crack
Lens: color 1/3”, 2592*1520, CMOS, viewing angle 6.7°-68°,sensitive 0.1 lux,
auto-focusing
Dimension( LxWxH): 155x95x90mm
Weight: about 1.5kg

Easy Sight is a professional intelligent pipeline solution supplier, we provide
robotic sewer camera, pipe crawler camera, sewer crawler camera, crawler
camera, manhole cleaning machine and etc. Want to know more? Please contact us.

Minimum Order: 1 sets

Click to Enlarge
