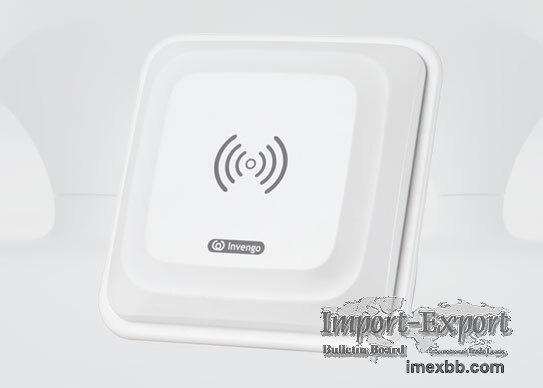

XC-AF26 High Gain Antenna

lnvengo XC-AF26 antenna offers high gain, ruggedness and excellent shock and
vibration resistance in a clean, durable, easy to install design. The XC-AF26
antenna comes in both Linear and Circularly polarized versions, making them
ideal for asset tracking, logistics and vehicle tracking applications.

Main Features of XC-AF26 High Gain RFID Antenna

Operating Frequency

840 ~ 868 MHz and 902 ~ 928 MHz

High Gain

Excellent vibration and shock resistance

Linear or Circular Polarization

Low VSWR

Protection Level: IP65

Durable and clean design

Simple installation and maintenance

SPECIFICATIONS OF XC-AF26 HIGH GAIN ANTENNA

Performance Parameter Operating Frequency 840 ~ 868 MHz
902 ~ 928 MHz
VSWR ≤ 1.5:1
Gain > 12 dBi
H-Plane HPBW 45˚
E-PlanePolarizationHPBW 45˚Linear or Circular
Antenna Impedance 50 Ω
Environmental Operating Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Humidity Range 5% ~ 95% RH
Protection Level IP65
Physical Parameters Dimensions 431 x 431 x 60 mm
16.97 x 16.97 x 2.36 in
Weight Approx. 3,3 kg / 7.3 Lbs
Case Material Plastic ASA, Aluminium
Models Linear XC-AF26L-FCC (902~928MHz)
Circular XC-AF26CP-FCC (902~928MHz)
XC-AF26CP-ETSI (840~868MHz)

As a rfid solution provider, we will offer types of related products for sale,
if you have needs, please leave us a message.

Minimum Order: 2000 pieces
