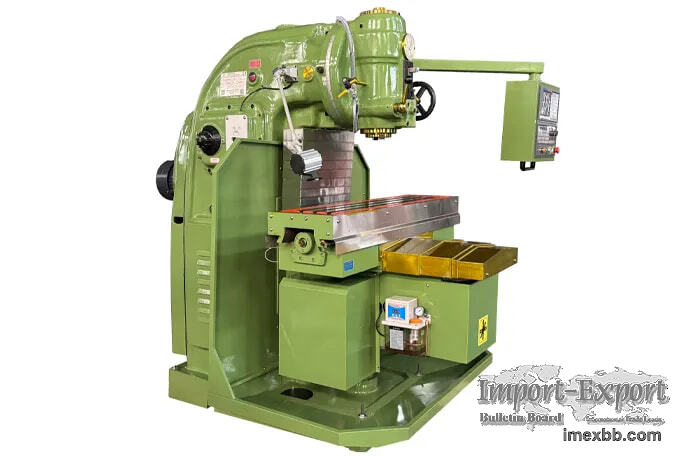

XH 5240 Vertical CNC Milling Machine

XH5240
The vertical cnc milling machine adopts a vertical frame layout, with the
columns fixed on the bed. The spindle box moves up and down along the columns
(in the Z direction), the slide moves longitudinally along the bed (in the Y
direction), and the worktable moves laterally along the slide (in the X
direction).
The bed, worktable, slide, column, spindle box and other large components are
all made of high-strength cast iron material, with a resin sand process and two
aging treatments to eliminate stress. These large components are optimized
using SW and Ansys design, which improves the stiffness and stability of both
the large components and the entire machine, effectively suppressing machine
deformation and vibration caused by cutting forces.
