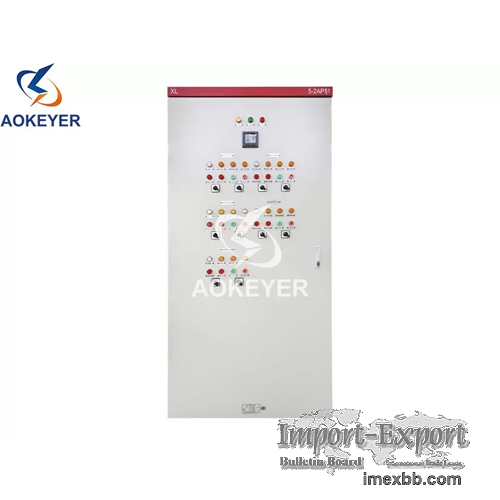

XL Power Distribution Switchgear

XL-21 power distribution box is suitable for ac 50 (60) HZ, voltage to 690V,
power supply system, for power or lighting power distribution, suitable for
industrial and mining enterprises and various civil buildings, with overload,
short circuit and leakage protection. This product meets the standard of GB
7251.1 Low Pressure Complete Switchgear and Control Equipment.
Technical data
Rated operating voltage: 380V (690V)
Rated operating voltage: 50 HZ (60 HZ)
The maximum rated working current is 630A
Rated short time (1S) tolerance current 30 KA
Rated peak tolerance current of 63 KA
Protection grade IP20, P30, IP40, IP54
