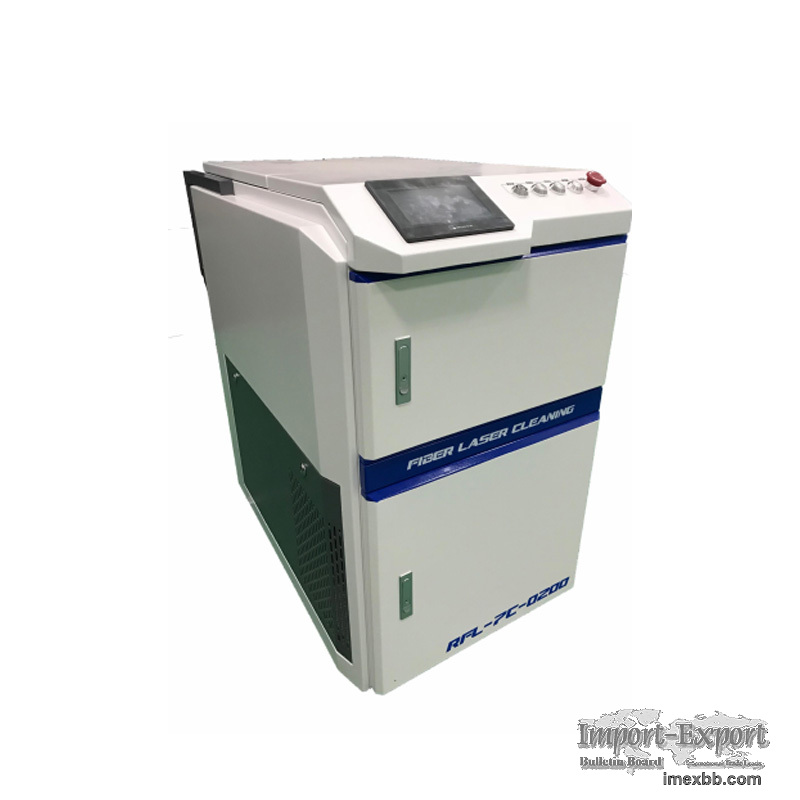

XQL RFL-7C-0200 Laser Cleaner

XQL RFL-7C-0200 Laser Cleaner
The product description

Laser cleaning technology refers to the use of high power density laser beam
irradiation on the surface of the workpiece, so that the surface of dirt, rust
or coating immediately evaporate or peel off to realize the cleaning process.

The cleaning equipment is a new high-tech product with a representative surface
that is easy to install, operate and automate. Easy operation, boot.

Can clean the source without the use of chemicals, media, dust and water. It
can remove resins, paints, oil stains, stains, grime, rust, coatings, coatings
and oxide layers, and is used in a wide range of industries, including covering
boats, auto repair, rubber molds, high-end machine tools, guides and rust.
Disassembly, three-round cleaning, tubing cleaning, paint cleaning, etc.,

The product features

Non-contact cleaning, does not damage the component base.

Precise cleaning enables selective cleaning of precise position and size.

No chemical cleaning fluid, no consumables, safe and environmental protection.

The operation is simple, only need to add power, can be manually or with the
robot for automatic cleaning.

High cleaning efficiency and time saving.

Laser cleaning systems are stable and require little maintenance.

Parameters
Operating environment and related parameters

Operating environment
Content Parameters
Supply voltage Single phase 220V±10%, 50/60Hz Alternating current
Machine power consumption 2500W
Environment Flat, no vibration, no impact
Working temperature 0℃～40℃
Working environment humidity ≤80%
Optical parameter
Content Parameters
Laser average power ≥200 W
Power adjustment range (%) 10-100(Adjustable)
Repeat frequency（KHz） 20-50（Adjustable）
Cleaning efficiency（m2/h） 5
Focal length（mm） 210/160
Cooling method Water Cooling
Mechanical parameter
Content Parameters
Machine Size 1100mm×700mm×1150mm
Weight 270Kg
Cleaning head weight 2.5Kg
Scan width 10-80mm
Moving way handhel
