Ycb Gear Oil Transfer Pump Horizontal Self Priming Type

Gear oil transfer pump

Horizontal, self priming gear pump is used to transfer lubricating oil or other
fluids similar to lubricating oil without solid particles and fibers at the
temperature below 200 degree celsius and the viscosity of 5 to 1500 Cst.

It can be also used in hydraulic system.

Reducing the rotary speed, the pump can deliver the liquids whose viscosity can be
up to 500, 000Cst.

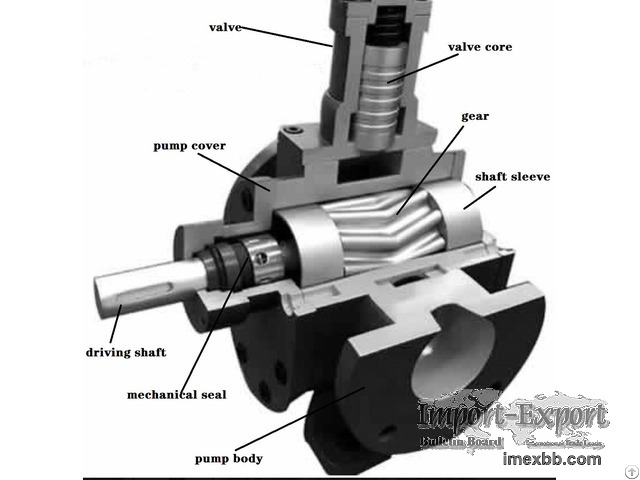

YCB gear pump is mainly composed of gear, shaft, shaft sleeve, pump body, pump
cover and seal etc.

The gears are adopted double circular teeth shape, which makes the gears less wear
on gear surface, stable revolution, low noise, long service life and high
efficiency.

Seals can be mechanical seal or packing seal, which can be chosen according to the
user’s requirements.

Application:

1 - as transfer pump or booster pump in oil delivery

2 - as fuel pump for delivery system, pressurization and injection in fuel supply
system.

3 - as the firefighting equipment to transfer foam liquid

4 - as hydraulic pump supplying hydraulic power in hydraulic system

5 - as lubricating pump in all industry fields.

Minimum Order: 1 sets
