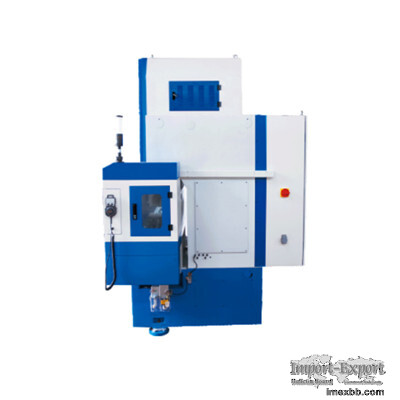

YKJ4232 CNC Gear Shaving Machine

GEEPRO Gear Shaving Machine DESCRIPTION
The six-axis four-linkage of the machine tool, in which the tool rotation axis
and the workpiece rotation axis adopt the variable lead precision pupa wheel
pair transmission, the main movement and the knife movement are directly
controlled by the servo motor, which has high processing efficiency and good
accuracy and stability. Mainly used in construction machinery, reducer and wind
power industries.

The machine tool is equipped with processing. The function of auto-switching
the cutter when the external gear is used, realizes the automatic conversion of
the cutter for the internal and external gears through program input.

Description unit specfflcalion
Max .workpiece dia external gear mm 320
Max module mm 6
Maximum distance between the vertices of the workpiece mm 580
Distance between centric max mm 280
Lines of workpiece and cutter min mm 110
Swing angle of cutter head deg ±30
Rotating speed of cutter mm/min 55-270 ( stepless)

Wuxi Geepro Machinery Import & Export Co., Ltd. has been focusing on Gear
Machinery since 2007 and is one of the most professional CNC Gear Hobbing
Machine Manufacturers In China, export CNC Gear Hobbing Machine, Honing Tools.
