Yongchang FRP Flange frp pipe fittings For sale

Yongchang FRP Flange frp pipe fittings For sale

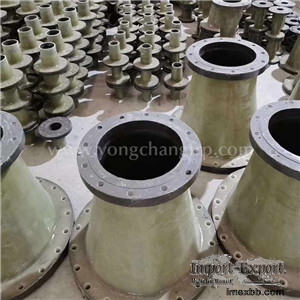

Yongchang FRP Flanges are integrally formed on the mold. The existing metal or
FRP molds below DN2000 for FRP flanges are integrally formed with FRP raw
materials on the mold by manual layering. The production, inspection and
acceptance of our company's FRP flanges are in accordance with ASTM "Glass
Steel Pipe and Fittings" standards. FRP flange connection size standards are in
accordance with ASME B16.5-1996, ANSI B16.5-1988, JIS and other standards, or
designed and manufactured by our company according to customer requirements.
The existing molds are DN25-DN2000.

FRP flange size table
D P=0.6Mpa P=1.0Mpa P=1.6Mpa
s L S L S L
15 12 100 15 100 15 100
20 12 100 15 100 15 100
25 12 100 15 100 18 100
32 15 100 15 100 18 100
40 15 100 18 100 20 100
50 15 100 18 100 22 150
65 15 100 20 150 22 160
80 18 150 20 160 25 230
100 20 150 22 180 28 250
125 22 200 25 230 30 300
150 22 200 28 280 33 370
200 25 220 33 360 38 500
250 28 280 42 420 48 620
300 32 300 48 500 55
350 35 400 54 570
400 40 420
450 45 480
500 50 540
600 52 640
700 55 690

Hebei Yongchang Composite Material Technology Co., Ltd. is a Chinese
professional company based in the Economic Development Zone, Jizhou District,
Hengshui City, Hebei Province. The company has introduced 6 fully automatic
microcomputer-controlled filament winding production lines, covering an area of
more than 50000 square meters, producing filament winding fiberglass storage
tanks, pipes and other series of products. The products manufactured by the
company have been widely used in the chemical engineering, light industry,
pharmacy, metallurgy, brewing, electrochemical water supply and drainage,
petroleum refining, steel-making, printing and dyeing, transportation and
storage, food brewing, fermentation, water treatment, seawater desalination and
other domestic and foreign industries.

If you want to know more about FRP series, please click here to visit our
website.
