YT-1000 ROTORK Ytc Smart Positioner Electric Actuator With Control Valve

PRODUCT DESCRIPTION
YT-1000 ROTORK series Smart Electric Actuator With Control Valve For Valve
Positioner
Product Description:
1000 series Electric-pneumatic Valve Positioner is used with the pneumatic
control valve to form a closed loop control loop. The DC current signal
given by the control system is converted into a gas signal that drives the
regulating valve to control the action of the regulating valve. At the same
time, feedback is made according to the opening degree of the regulating
valve, so that the valve position can be correctly positioned according to
the control signal outputted by the system. The electric positioner can be
used for singleacting (spring-return type) and double-acting pneumatic
actuators.

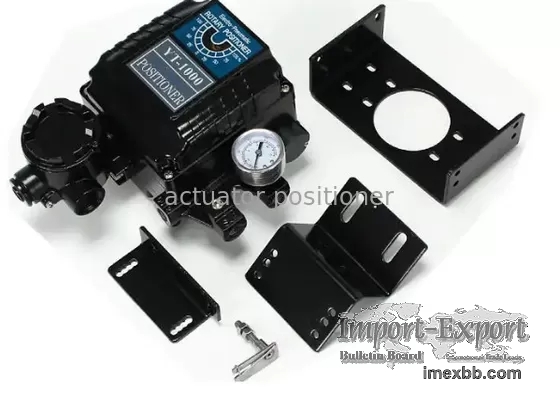

Installation of Electric-pneumatic valve positioners: This series is
adjustment type and is designed for double-acting or single-acting actuators
with input and output 4-20 mA feedback signals. The pneumatic actuator is
equipped with an electric-pneumatic valve positioner and bracket, linking
the feedback lever through the pinion NAMUR slot, which is fastened by 4
bolts. The air source pipeline can be connected to realize the adjustment
control.




YT-1000 ROTORK Ytc Smart Positioner Electric Actuator With Control Valve 0
Technical Parameter:
Model

Item

WOOL (LinearType) 1000R (RotaryType)
Single acting Double acting
Input signal, resistance 4~20mA.DC 250Q+15Q
Gas supply pressure 1.4- 7kgf/cm2 (20~ 10Opsi)
Stroke 10~ 105mm 0-90°
Electrical Interface PT (N PT) 1/2
Explosion-proof grade ExdllBT4/ExdllBT6/ExiallCT6
Protection level IP66
Ambient temperature -20°C~ 70°C Repeatability ±0.5%
Linear ±1%F.S ±2%F.S ±2%F.S
Hysteresis ±1%F.S Sensitivity ±0.2%F.S ±0.5%F.S
Air energy consumption 3LPM (sup=1.4kgf/cm2,20psi)
Flow 80LPM (sup=1.4kgf/cm2,20psi)
Material Castaluminum
Weight 2.7KG-2.8KG
Support and Services:
Technical Support and Services for Electro-Pneumatic Positioner
Our technical support and services for Electro-Pneumatic Positioner are
designed to help you maximize the performance of your product. We can
provide:

Assistance in product installation and maintenance
Product troubleshooting and diagnosis
Technical training and instruction in the use of the product
On-site service and support
Remote support and diagnostics
Software upgrades
Replacement parts and components
For more information about our technical support and services, please
contact us today.


Packing and Shipping:
Packaging and Shipping
Electro-Pneumatic Positioner products should be packaged and shipped in the
following manner:

All products should be packaged in corrugated cardboard boxes and secured
with bubble wrap.
Shipping labels should be affixed to the outside of the package, with the
shipment destination clearly marked.
Products should be shipped via a reliable carrier, such as UPS or FedEx.
Products should be shipped with tracking information, so that the shipment
can be monitored in transit.
