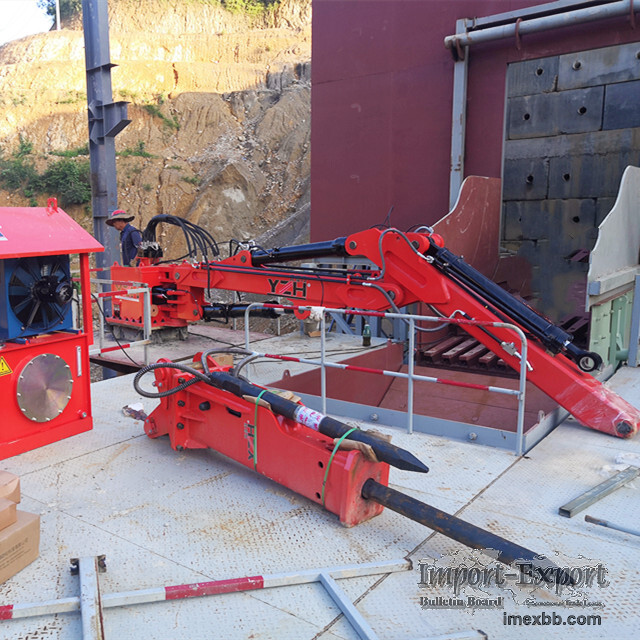

YZH Static Type Pedestal Boom System

In today's fiercely competitive industrial field, choosing a high-performance,
reliable, and durable mechanical equipment plays a crucial role in improving
production efficiency and reducing operating costs. YZH has become a trusted
partner for many enterprises by providing a series of Static Type Pedestal Boom
System to global customers based on its years of deep accumulation and
continuous innovation in the industry. Today, let me introduce the Static Type
Pedestal Boom System of BHB600 model in detail.
Main parameters of BHB600 Hydraulic Pedestal Boom System：
Model No. BHB600
Boom weight(without hammer) 3410KG
Max horizontal working radius 8280MM
Max.vertical working radius 6230MM
Min.vertical working radius 1600MM
Max.Height 4800MM

Technical performance of BHB600 Static Type Pedestal Boom System:
1. The structural components have undergone strength verification and aging
treatment, and are processed using high-strength structural steel through
stamping and gas shielded welding methods, with extremely strong load-bearing
capacity. The 360 ° rotation angle can fully meet various customer
requirements.
2. It can be equipped with a crushing hammer from the Yuanzheng Asset brand, or
other brands of crushing hammers can be selected, such as the Finnish RAMMER
hydraulic crushing hammer, the Italian Indeco hydraulic crushing hammer, and
the Krupp hydraulic crushing hammer. The crushing hammer equipped by Yuanzheng
Bank can crush a minimum of 60 tons of ore per hour, with a crushing block size
of about 1m ³ and a maximum crushing hardness rock coefficient of F17. All
indicators meet and are superior to the working conditions of most mines.
3. The main components of the hydraulic pump station system (power station),
such as constant pressure variable pump, hydraulic proportional multi way
valve, pilot control valve, balance valve, buffer valve, etc., are all imported
or domestic high-quality brand manufacturers. The operation mode is simple,
flexible, efficient, reliable, with high safety factor and energy-saving and
consumption reduction.
The standard for the electrical control system is AC 380V50HZ motor drive. The
system controls pressure, oil level, oil temperature, working time, etc., and
has alarm indicators. The PLC centralized control device and circuit
connections adopt a high protection level (IP64). Made of stainless steel
shell, it has the advantages of cleanliness, energy saving, low operating cost,
strong adaptability, and can work in harsh environments such as high
temperature/high humidity/high cold/high dust concentration.
5. The cooling system adopts an air-cooled cooler to control the oil
temperature of the system, providing protection for the long-term operation of
the equipment and the use of hydraulic components and vulnerable parts,
extending the service life of the whole machine and components, and reducing
the after-sales maintenance cycle.
6. The cab adopts a sealed type with air conditioning and a reasonable human-
machine engineering layout, providing the operator with a more comfortable and
relaxed working environment.
7. Wireless remote control, which can achieve dual operation of wired and
wireless, making it convenient for operators to move remote control devices.
8. Fiber optic+5G remote video control, which can achieve human-machine
separation remote video control operation.
9. After shot blasting for rust removal, military aircraft carrier rust removal
primer is applied for spraying, which enhances the rust and corrosion
resistance of the equipment under outdoor conditions and prolongs its service
life.
