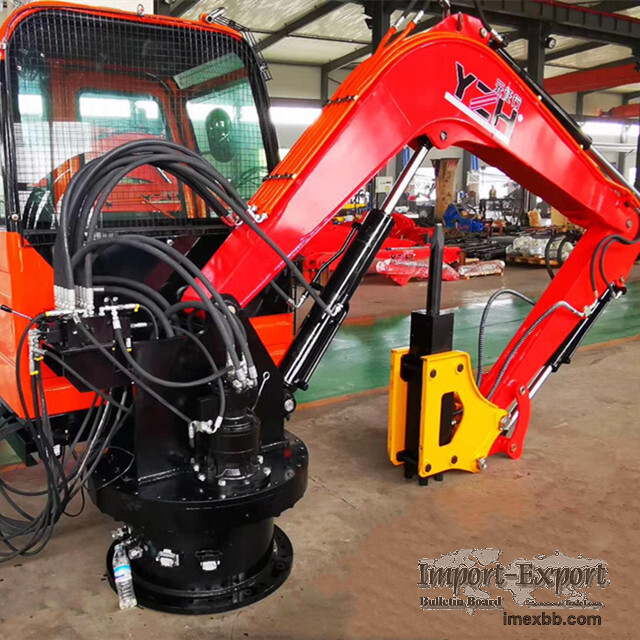

YZH Stationary Rockbreaker Boom System

Product Overview
The YZH Stationary Rockbreaker Boom System is a heavy-duty hydraulic rock
breaking solution engineered for secondary breaking applications. It is widely
installed at crusher hoppers, grizzly tunnels, ore pass and material chutes to
eliminate oversized boulders, blockages and rock hang-ups. This stationary boom
system replaces manual rock breaking work, improving site safety, boosting
crushing line throughput and reducing equipment downtime.
Built with robust welded structure, high-strength boom arm and matched
hydraulic breaker, YZH stationary breaking system delivers stable impact force
for mining, quarry, cement, aggregate and recycling industries. Custom working
radius, hydraulic power pack and control modes are available to match your site
conditions.

Main parameters
Model No.：WHD1000
Boom Weight (without hammer)：10930 kg
Max. Horizontal working radius：12530 mm
Max. Vertical working radius：9350 mm
Min. Vertical working radius：4000 mm
Max. Height：8260 mm
Max. Working Depth：7420 mm
Rotation：360 °
Pedestal Size：Φ1800 mm
Hydraulic hammer model：YZH1350/YZH1400/YZH1500/YZH1550
Power of Hydraulic Power Unit：75/90/110 kw

Technical Advantages
·Remove rock blockages quickly to keep crusher running continuously
·Protect primary crusher from oversized rock damage
·Reduce manual rock breaking and improve operator safety
·Stable performance under harsh dusty mining environment
·Complete set supply, one-stop solution from design to after-sales

Application Scenarios
- Mining: Ore bin, crusher feed hopper, ore pass blockage clearing
- Quarry & Aggregate Plant: Oversized rock secondary breaking
- Cement Plant: Raw material crushing system
- Recycling & Demolition: Rock and concrete lump breaking

Our Service
- Custom design according to site dimension and working requirement
- Complete technical drawings, installation manual and operation guide
- Spare parts supply and global after-sales support
- Pre-sale technical consultation for layout planning

Minimum Order: 1 sets
