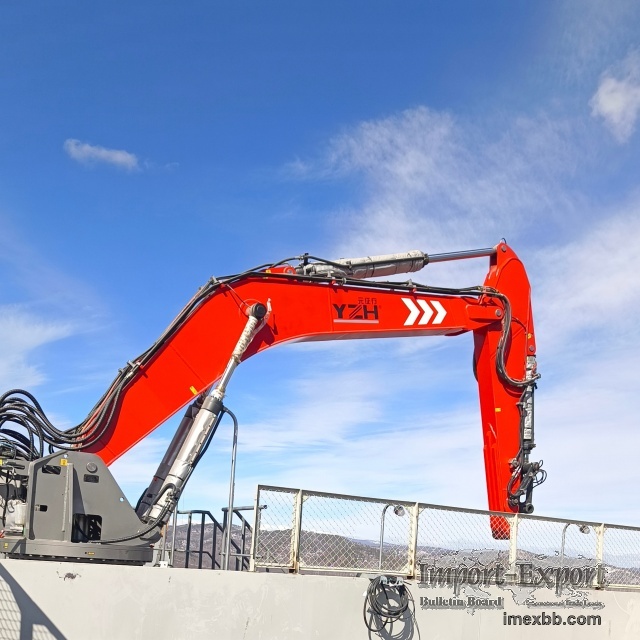

YZH WHC970 Intelligent Stationary Hydraulic Rock Breaker Boom System

YZH Intelligent Stationary Hydraulic Rock Breaker Boom System is a
fixed‑mounted, electro‑hydraulic integrated breaking system specially
developed for aggregate processing, mining, quarrying and crushing plant
applications.
The system is installed on a concrete foundation and covers the feed opening,
grizzly, chute and material silo areas through a multi‑degree‑of‑freedom
boom mechanism. It is designed to break oversized rock boulders, clear
blockages and replace manual breaking or secondary blasting, helping customers
improve site safety, reduce downtime and increase crushing plant efficiency.

Main parameters
Model No.:WHC970
Boom Weight (without hammer):8432kg
Max. Horizontal working radius:11925mm
Max. Vertical working radius:9605mm
Min. Vertical working radius:2485mm
Max. Height:6858mm
Max. Working Depth:8156mm
Rotation:360°
Hydraulic hammer model:YZH1350/YZH1400
Power of Hydraulic Power Unit:55/75/90kw

Core Features
1. Heavy‑Duty Structural Design
The main boom, pedestal and structural frame are manufactured with
high‑strength steel plates and optimized through finite element analysis. This
ensures high rigidity, fatigue resistance and long‑term stable operation under
continuous heavy‑load conditions.
2. Intelligent Control System
The system can be equipped with wireless remote control, video monitoring and
multi‑mode operation functions. Operators can complete rock breaking and
blockage clearing from a safer distance, reducing direct exposure to high‑risk
working areas.
3. Optimized Hydraulic Performance
The stationary hydraulic rock breaker boom system is matched with an
independent hydraulic power unit and a compatible hydraulic hammer. The flow,
pressure and power output are systematically matched to achieve stable impact
force, low failure rate and efficient breaking performance.
4. Wide Working Coverage
The boom system provides large horizontal and vertical working ranges, covering
multiple breaking points around the crusher feed opening. It can handle
oversized rock blockages that are difficult to reach by manual operation or
mobile equipment.
5. OEM & ODM Customizable
We offer customized solutions based on actual site conditions, installation
space, material hardness, breaking requirements and automation level. Customers
can select different boom lengths, working radii, rotation ranges, hammer
models and power unit configurations.

Application Scenarios
Aggregate Processing Plants
Mines and Quarries
Cement Plants
Metallurgical Plants

Why choose YZH?
YZH focuses on the design and manufacturing of heavy‑duty hydraulic breaking
equipment for mining and aggregate industries. With rich field experience,
reliable structural design and flexible customization capabilities, we provide
customers with integrated solutions from equipment selection, structural
design, hydraulic matching to after‑sales service.

We offer:
Customized design according to site drawings
Professional technical consultation
Complete equipment configuration
Reliable after‑sales support
Global spare parts supply

Minimum Order: 1 sets
