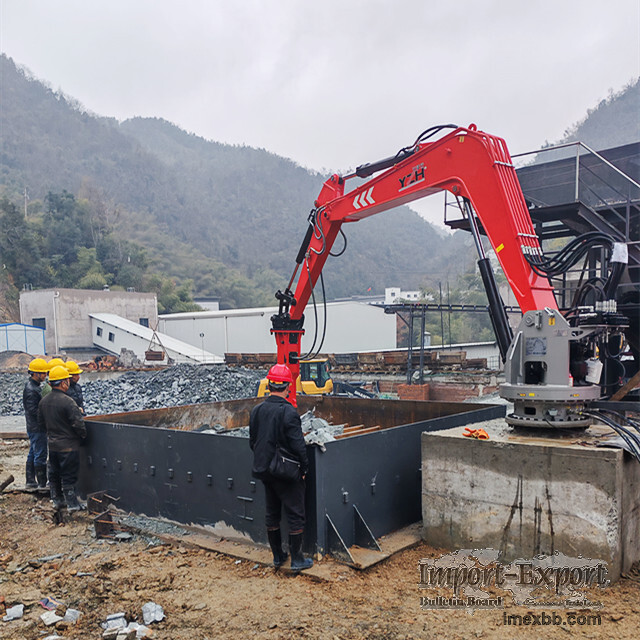

YZH WHC970 rockbreaker systems

YZH WHC970 Rockbreaker System is a high-performance equipment that integrates
mechanical, electronic, and hydraulic technologies.
Main parameters of YZH WHC970 Rockbreaker System:
Model No. WHC970
Boom weight(without hammer) 8504KG
Max.Horizontal Working radius 11925MM
Max.vertical working radius 9605MM
Min.vertical working radius 2485MM
Max.Height 6858MM
The Features of  YZH WHC970 Rockbreaker System:
·Sturdy structure and powerful power: The main structural components of the
equipment are welded with high-strength manganese steel, which can withstand
strong impacts and loads. The core power comes from a hydraulic station with a
power range of 30-75kw, which drives the hydraulic breaker to complete strong
crushing.
·Flexible control and intelligent control: Provides two modes of cabin control
and remote control, with a remote control distance of up to 10-20km. Some
models are also equipped with video surveillance systems to achieve remote
visual operation.
·Wide working range and multifunctional accessories: The horizontal extension
range of the working arm is usually between 4880-20400mm, and the swing angle
can reach 170 ° to 360 °. By quickly replacing the connector, various
hydraulic tool heads such as breaking hammers, breaking pliers, hydraulic
shears, and digging buckets can be equipped, achieving multi-purpose use of one
machine.
·Strong environmental adaptability: Adopting a sealed structure and special
design (such as optional high and low temperature automatic temperature control
device), it can work stably in harsh environments such as high dust, low
temperature, high altitude, underground mines, and high temperature in steel
plants.

The  Benefits of  YZH WHC970 Rockbreaker System:
·High efficiency, energy saving, and good economy: Using electric motor drive,
the energy consumption cost is said to be reduced by more than 50% compared to
traditional diesel equipment, and the hourly electricity cost is about 10-20
yuan.
·Safe, reliable, and easy to maintain: Remote control operation keeps workers
away from dangerous areas. The equipment adopts a high-performance shock
absorption system to reduce impact loads. The core components are selected from
international brands, which reduces the failure rate by more than 80% compared
to traditional equipment.
·High degree of intelligence: adopting a flexible control system, precise
fixed-point positioning can be achieved. Equipped with a high protection level
controller, supporting multi parameter fusion.
·The environmental advantages are obvious: electric drive achieves zero on-
site emissions, and the equipment operates with low noise.

The Application of  YZH WHC970 Rockbreaker System:
YZH WHC970 Rockbreaker System is widely used in multiple industrial fields:
·Mining field: Used for crushing machine feed ports, chute heads, and grid
screens in open-pit or underground mines, to handle large ore blockages.
·Metallurgical casting: used for shell making, brick removal, unpacking
treatment of various mobile steel ladles, as well as slag cleaning of
metallurgical furnaces.
·Sand and gravel aggregates and building materials: Installed next to the
crushing station in the sand and gravel aggregate yard, processing large stones
to ensure smooth production.
·Other industrial environments, such as cement plants, chemical plants, power
plants, ports, and docks, require the handling of large materials.

In terms of typical customer cases, the mechanical arm equipment of YZH brand
has been promoted and applied in dozens of large state-owned enterprises such
as China National Chemical Corporation, China Gold Group, Jinchuan Group, and
Ansteel Group.

Minimum Order: 1 sets
