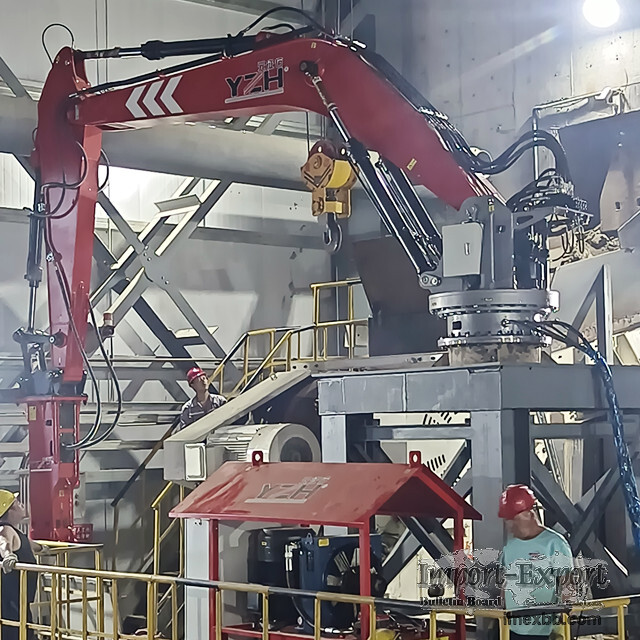

YZH WHEN 1300 Stationary Pedestal Rockbreaker

Main parameters of WHEN1300 Pedestal Rockbreaker:
Model No. WHEN1300
Boom weight(without hammer) 15700kg
Max.Horizontal Working radius 15000mm
Max.vertical working radius 12640mm
Min.vertical working radius 1560mm
Max.Height 8400mm

The Features of the WHEN 1300 Stationary Pedestal Rockbreaker:
Intelligent Multi-Mode Control: Supports cab operation, remote control, and
video monitoring. Remote control range extends up to 10–20 km, with integrated
wired/wireless dual-mode operation. Paired with a high-performance controller,
it enables precise positioning and flexible control.
Reliable Structural Design: Features rectangular steel-fabricated boom beams,
large-diameter hydraulic cylinders, and reinforced pins. The slewing motor
incorporates a buffer brake system. Equipped with a high-performance shock
absorption system to mitigate impact loads on the entire machine. Core
components utilize internationally recognized brands.
Versatile Application: This integrated electromechanical-hydraulic system
features modular design compatible with multiple front-end tools. It operates
continuously in harsh environments including open-pit mines, underground
shafts, high altitudes, and corrosive conditions, serving diverse applications
such as mining, cement plants, and metallurgical foundries.
The Benefits of WHEN 1300 Stationary Pedestal Rockbreaker:
High Safety and Environmental Performance: Remote operation keeps personnel
away from hazardous crushing sites, completely eliminating safety risks
associated with manual blockage clearance. Electric motor drive produces zero
exhaust emissions, reduces energy consumption by over 60% compared to
traditional diesel equipment, and operates with low noise levels.
Outstanding Production Efficiency: Reduces production line downtime by 5%-20%
and boosts primary crusher output by 20%. Operating costs are only 1/6th of
equivalent-power excavator fuel expenses, with failure rates reduced by 85%
compared to traditional diesel equipment and low maintenance costs.
Quality and After-Sales Assurance: Certified under EU standards and ISO9001
quality certification, the company provides turnkey solutions including robotic
arms and electronic control systems, along with 24/7 online customer support to
meet customized client requirements.
The Application of WHEN 1300 Stationary Pedestal Rockbreaker:
The WHEN 1300 Stationary Pedestal Rockbreaker has been successfully deployed
across multiple large state-owned enterprises. China Nonferrous Metal Mining
Group and China National Gold Group utilize it to resolve jaw crusher feed port
blockages in mining operations, significantly reducing labor intensity and
safety risks while enhancing overall ore crushing and transportation
efficiency. Ansteel Group and Jinchuan Group employ it for metallurgical raw
material crushing, effectively minimizing production line downtime, supporting
steady capacity growth, and advancing standardized and intelligent production
processes.
