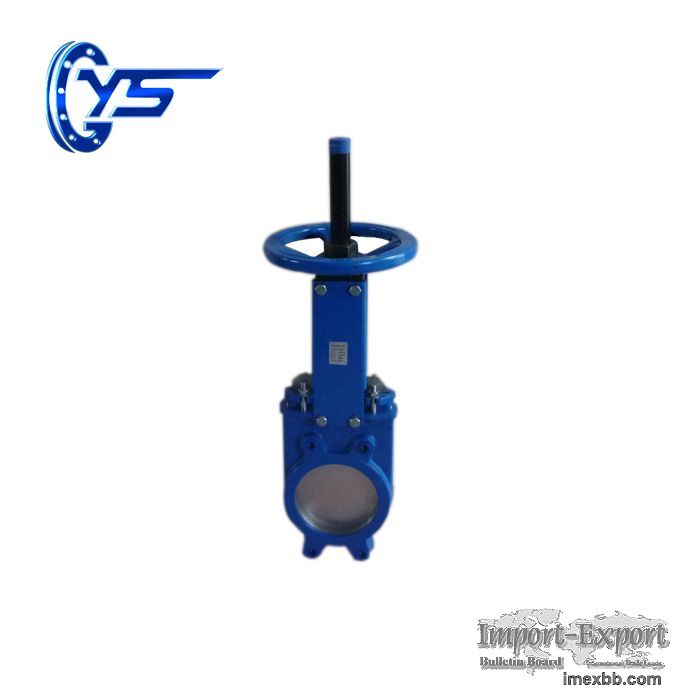

Z73 / 43X-10 / 16Q slurry gate knife gate valve

Z73 / 43X-10 / 16Q slurry gate knife gate valve gate valve manufacturer
industrial gate valve supplier
Medium temperature: ≤90 ℃
operation: manual / electric / bevel gear / pneumatic
medium: liquid solid particle content of not more than 4%
Diameter: DN50-2000
Pressure: 1.0-1.6mpa
Body Material: GGG40 ( Ductile iron, stainless steel, duplex stainless steel)
Connection: Wafer
Seated material: Metal/EPDM/Nitril/Viton/Silicone
Optional pressure rate:10Bar/150lbs
3 way gate valve Details
slurry gate knife gate valve Dimensions and connection dimensions
model Nominal diameter
(mm) Size (mm)
L B C D E H H1
Z43 / 73X
-10 / 16Q 50 48 135 90 105 119 295 360
65 48 155 90 115 135 335 415
80 51 165 120 124 150 360 455
100 51 195 122 135 180 400 515
125 57 220 127 160 203 455 595
150 57 220 136 175 235 510 675
200 60 270 136 205 280 585 805
250 70 335 160 240 347 695 965
300 76 385 165 275 395 765 1085
400 89 525 168 365 530 995 1415
450 89 565 200 435 570 1150 1620
500 114 630 240 475 680 1250 1770
600 114 735 255 580 780 1460 2080

slurry gate knife gate valve Material of main parts
Part Name material
Valve body GGG40
gate stainless steel
Valve stem 2Cr13
Sealing ring NBR / EPDM

slurry gate knife gate valve Performance specifications
model Nominal pressure
(mpa) test pressure proper temperature Applicable medium
Shell pressure test Sealed pressure test
Z73 / 43X-10Q 1.0  Working pressure * 1.5 times Working pressure * 1.1
times ≤90 ℃ Liquid solid particles not exceeding 4%
Z73 / 43X-16Q 1.6
Working pressure
DN50-250 10KG / cm³ DN300-DN400 6KG / cm³ DN450 5KG /
cm³
DN500-DN600 4KG / cm³ DN700-DN1200 2KG / cm³


Tips:

Compact structure, reasonable design, good valve rigidity, smooth passage.

   2.The use of flexible graphite packing, reliable sealing, light and
flexible operation


Applications:
Industrial  , applications: Petroleum, Chemical, Paper Makin , g, Fertilizer, C
oal Mining,water treatment ,  and etc.


industrial gate valve Advantages:

We have Sand or Precision casting technology,So we can as your drawing design
and production.


Customers' logos are available cast on the valve body.

  3. All our casting with tempering procedure before Processing.
  4. Use the CNC lathe during whole process.
  5. The disc sealing surface use plasma welding machine welding.
  6. Every valve must be tested before delivery from the factory, only
qualified ones can be shipped.
  7.The kind valve we usually use Pallets to package, We also can according to
specific customer's requests.

Company Advantages:
1.We are manufacturer Since 1992.
2.CE,API,ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!
