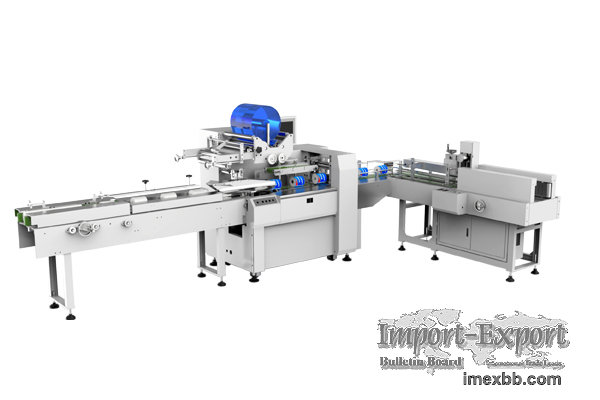

ZB520A Single Roll Tissue Packing Machine

This toilet paper packaging machine adopts 5-axis servo control technology,
with fast response speed and precise movement.

It is suitable for packing single toilet rolls, double rolls, four rolls and
double kitchen rolls.

The middle seal adopts an instant heating method and temperature control module
control;

The middle seal temperature is automatically adjusted according to different
packaging speeds;

The shutdown film will not burn the packaging film and the sealing effect is
firm and beautiful;

The film tightening device makes the packaging film fit perfectly with the
product, and the overall product packaging is compact and beautiful;

The knife seal has automatic reset function in case of cutting failure;

With anti-air bag function (that is, no film without material);

Large LCD touch screen display and parameter setting, easy to change
specifications;

Specifications of ZB520A Toilet Paper PackingMachine

Model ZB520A
Packing Size Diameter 90-130(mm)
Length 90-230(mm)
Packing Film Max Diameter for the Film Roll φ400 mm
Max Film Width 700mm
Applicable Film Thickness 0.018mm—0.03mm；
Applicable Material SPP, KPP, OPP
Packing Speed 30-80PACKS/MINUTE
General Power 15.5Kw
Machine Weight 2500(kg)
Machine Dimension Size L5000mm*W3450mm*H1700(mm)
Power Type 3 PHASE 4 WIRE 380V 50HZ
Compressed Air Supply 6kg/cm2  0.25m3/min
Machine Noise ≤75（dB）

Soontrue machinery is specialized in producing toilet roll packing machine, our
team of experts is committed to improving the quality of the machine to ensure
an excellent experience for customers.

Soontrue is one of the leading global suppliers devoted to the R&D, manufacture
and service of packing machinery. If you are interested in our products, leave
us a message and get the tissue paper packing machine price.

Minimum Order: 1 sets
