Zhuote Platform steel grating

Zhuote Platform steel grating

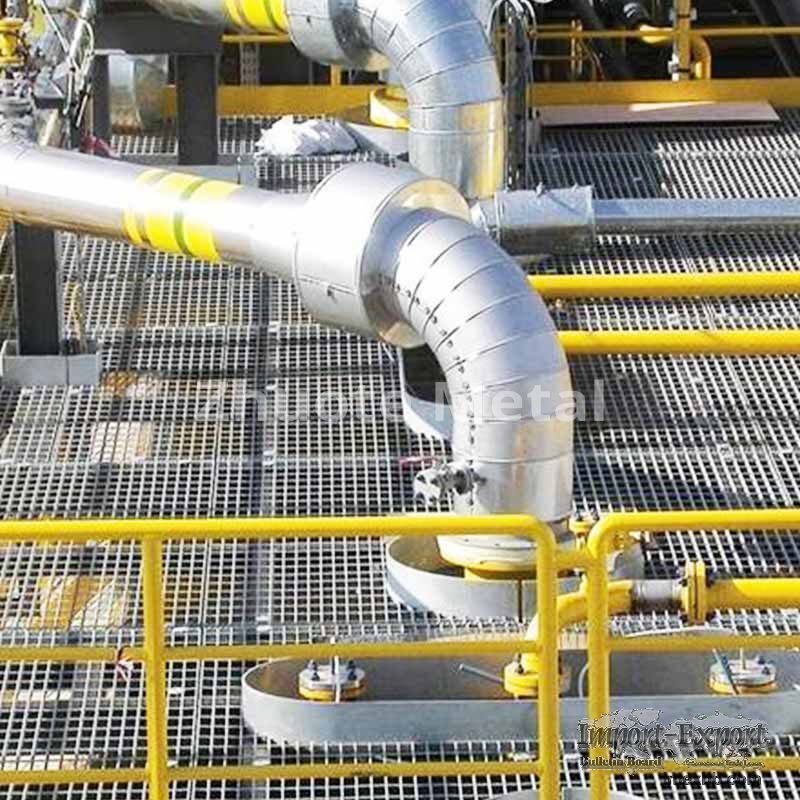

Platform steel grating, composed of several pieces of welded steel grating or
press locked gratings are commonly installed in ships and industrial
applications, such as refineries, power plants and offshore platforms.
Platform steel grating, composed of several pieces of welded steel grating or
press locked gratings are commonly installed in ships and industrial
applications, such as refineries, power plants and offshore platforms.

metal grate platform.

Carbon steel, galvanized steel or stainless steel material options.

Walkways and stair treads can be supplied.

Ideal for industrial applications.

Wide range of configurations for choice.

Special discount for large orders.

Project reference can be supplied for your bid.

ISO Certificated factory.

CAD or 3D drawing can be supplied for your design and construction.

Grating Types
Welded Steel Grating

Press lock Steel Grating

Surface Types
Plain Grating

Serrated Grating

Custom Designs
Cutout

Toe plate

Stair Treads
More information you can click here
No. Item Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5,
32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm etc;I bar: 25x5x3, 30x5x3,
32x5x3, 40x5x3 etcUS standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1
1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5,
34.3, 35, 38.1, 40, 41.25, 60, 80mm etcUS standard: 19-w-4, 15-w-4, 11-w-4, 19-
w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' &
4' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel
& Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized,
painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS
8 Application -Rotation ways, channels, and platforms for pump rooms
and engine rooms in various ships;
-Flooring in various bridges such as railway bridge sidewalks, over-bridges
across the street;
-Platforms for oil extraction sites, car washing sites and air towers;
-Fencings for car-parks, buildings and roads; drainage trench covers and
drainage pit covers for high strength.

Minimum Order: 50 square metres

Click to Enlarge
