ZKR Series Clean Coal Dehydration Straight Line Screen

ZKR Series Clean Coal Dehydration Straight Line Screen vibrating screen
manufacturer coal vibrating screen

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal
Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, etc.

Fengwang Vibrating Screen Machine Applications:Aggregates Shaping, Mechanism
sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy,
Construction, Highway, Water Conservancy

ZKR series clean coal dehydration straight line screen is applied to coal
preparation, mineral processing, power generation, sugar, salt and other
industrial sectors, the medium and fine size of the material for dry or wet
classification or dehydration, desorption and desilting.
Structural characteristics of
ZKR plant dehydration linear sieve series adopts two vibrator horizontal
layout, reduce the screen height, reducing the height of vibration, the
external synchronous gear box, double motor drive, are connected by a flexible
coupling between the drive shaft, the structure is novel, gear box and motor
vibration, sieve plate used to sew sieve plate or punching sieve plate welding,
longitudinal compression, screen via special reinforcement, the whole machine
stiffness was improved.
The screen machine is based on the strength test and modal analysis data as the
design basis, integrated Germany, the United States, Japan and other countries
of the screen machine has the advantages of advanced structure, strong and
durable, stable and efficient movement, large production capacity and
convenient maintenance.
The technical features
Parameter area m feed size mm processing capacity t/h power kw outline size mm
(length * width * height) working dynamic load N per fulcrum
ZKR1548 7.3 <100 45-65 2*7.5 5055*3100*1370 ±2000
2ZKR1548 7.3 <200 45-90 2*11 5055*3100*1900 ±2300
ZKR1848 8.5 <100 65-110 2*11 5055*3460*1370 ±2100
2ZKR1848 8.5 <150 65-110 2*15 5055*3460*1900 ±2400
ZKR2148 10 <100 70-95 2*7.5 5055*3700*1370 ±2400
2ZKR2148 10 <200 80-100 2*7.5 5055*3700*1900 ±2600
ZKR2448 12 <200 90-135 2*11 5055*4060*1370 ±2300
2ZKR2448 12 <200 90-135 2*15 5055*4060*1600 ±3200
ZKR2460 14 <100 100-180 2*15 6275*4060*1500 ±2200
2ZKR2460 14 <200 100-180 2*18.5 6275*4060*2100 ±3200

ZK vibrating screen Advantages and Features
1.Various material separation range- power or particle,wet or dry, heavy or
light,coarse or fine, hot or cold.
2.Various size range-available diameter from 400mm to 2000mm,mesh size can
reach 500 mesh ( 0.028 mm).
3.Environmentally Friendly- Fully enclosed structure,no dust pollution,improve
working conditions for operators as well.
4.Quick Screen Changes-Quick release device is provided to replace the screen
with 5 minutes.
5.Automatic screen cleaning-bouncing balls keep screen openings clean and
maintain a good efficiency.
6.Customized order- mobile vibrating screen can be customized according to
customer’s demand.
7.Unique design-Mature technology,compact and simple structure,convenient
installation and maintenance.
8.Wide application-Rotary vibrating screen is applicable to any powder,
granule, particle and mucus.

The main products are coal feeder, automatic coal washing machine, cleaned coal
screen, coal slime screen, flotation machine, centrifuge, slurry pump and so
The company insists on survival by quality, development by innovation, and good
after-sales service to win the trust of users, and share the fruits of success
with users.

Welcome to click here to customize your own coal washer. , -vibrating-screen-machine.html

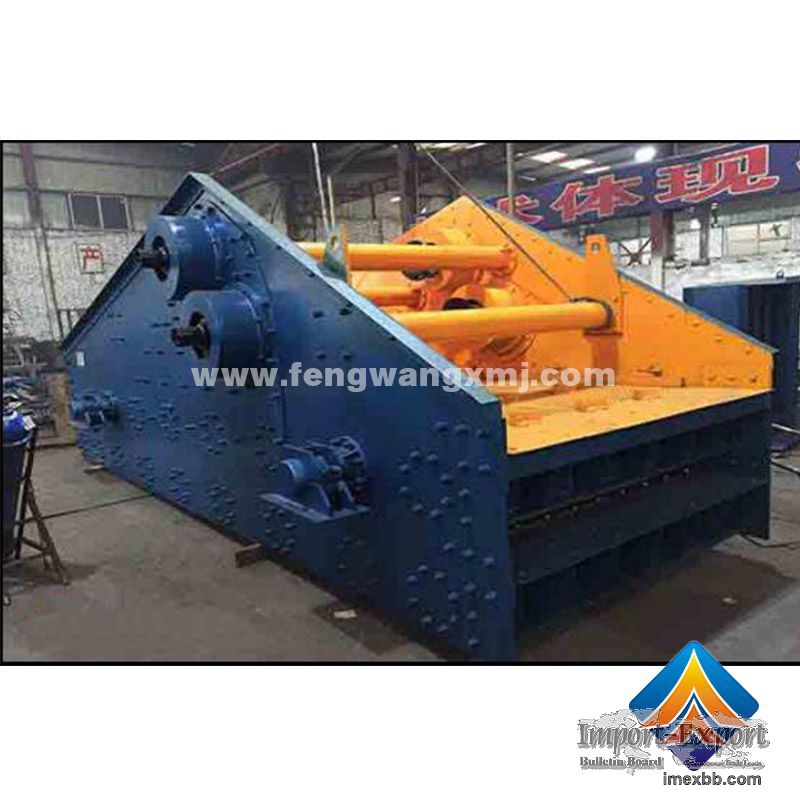

ZKR Series Clean Coal Dehydration Straight Line Screen
