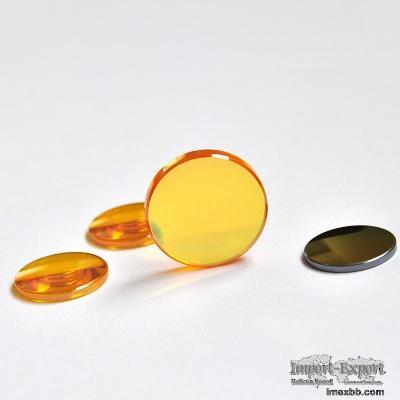

ZnSe Cylindrial Lens

ZnSe Cylindrial Lens
0 Degree Output Lens Description
Material :K9 and JGS1 Quartz
ZnSe lens is a good material for CO2 laser cutting and engraving machine, We
select excellent material from USA, High transmission and high quality surface
roughness. With high quality, we produce ZnSe plano convex lens, ZnSe plano
concave lens, ZnSe meniscus lens, Znse ball lens, and custom size ZnSe.
Product Details:
Diameter 5mm to 250mm
Thickness 0.5-40mm
Material Import USA ZnSe,China ZnSe
Surface Quality 40-20 standard
Flatness 1/10 lambda
Chamfer 0.25mmx45degree
Focal Length Tol. +/-1%
Coating Wavelength 8um-12um
Clear Aperture >85% of diameter
Design Wavelength 10.6um

Minimum Order: 10 pieces
