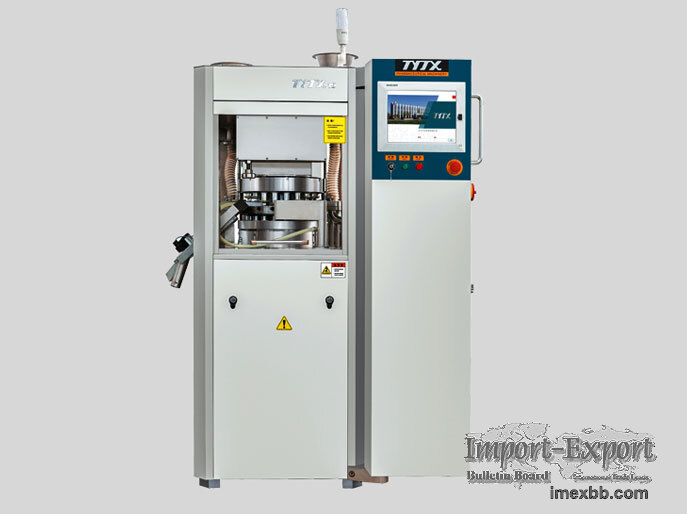

ZPTS Series of Rotary Pill Press Machine

This Rotary Pill Press Machine is a small rotary double slides tablet press
machine. The main motor adopts Siemens inverter step-less speed regulation,
large torque, continuously adjustable production speed. The precise pressure
detection and collection system of Rotary Pill Press Machine are used for
optimization calculation and processing. By standardizing the parameters of
different Rotary Pill Press Machine, the system of rotary pill press can
automatically adjust the weight of the tablet to ensure the stability of the
tablet variation. The rotary tablet compression machine has a variety of
protection functions.

Specification of ZPTS Series of Rotary Pill Press Machine

Model ZPTS-19 ZPTS-23
Punch & die type(EU) D B
Number of press station 19 23
Max tablet diameter (mm) 25 16
Max abnormal prelate axis size (mm) 25 18
Max output (Tablet/h) 68400 82800
Max filling depth (mm) 20 16
Max main pressure (KN) 80
Idle load noise dB (A) <80
Power 308v 50HZ 7.5KW
Size L×W×H (mm） 800×95×1705
Weight (kg) 980
Re: No additional information noted if there are any changes caused by the
technical development.

Benefit of ZPTS Series of Rotary Pill Press Machine

The main transmission system of the rotary tablet punching machine adopts the
worm gear reducer, with large output torque, high transmission efficiency,
smooth transmission, low noise and long service life. As one of the tablet
press machine suppliers, our Rotary Pill Press Machine complies with the
requirements of 21CFR part 11, with an electronic signature function.

As one of the pharmaceutical machinery suppliers, we provide double rotary
tablet compression machine, single rotary tablet press machine, automatic pill
press, pharmaceutical machinery china and etc. Want to know application of
rotary tablet machine or rotary tablet machine price, contact us.
