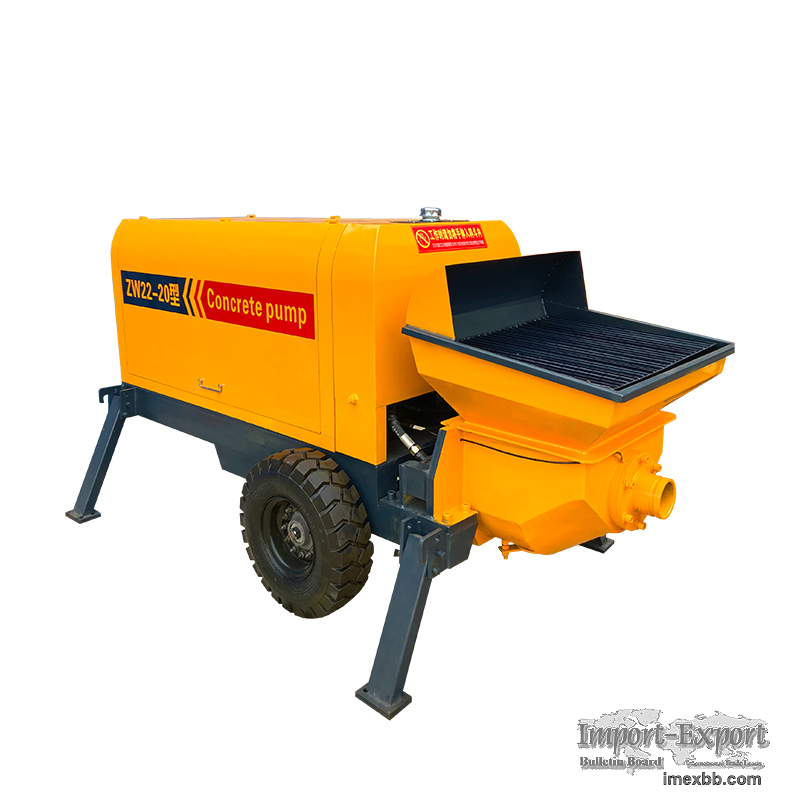

ZW-20 Concrete Pump

The new ZW-20 concrete pumps as supplied by Qijiu come in an array of outputs
15 cubic meters per hour over distances of 80m. Our trailer-mounted concrete
pumps offer the ideal solution for placing concrete or shotcrete in hard–to-
access areas because of their compact size, they can also be used as an
alternative to truck-mounted concrete pumps on larger pours that require a
slower output rate.
Electric motor or Diesel motor 2 options. Concrete output: 8-15m³/h
You can click here to get the concrete pump price
Model ZW-20
Concrete output/m³ 8-15
Concrete Pressure/Mpa 11
Hydraulic Pump Output/cc 80
Horizontal Pumping Distance/m 80
Vertical Pumping Distance/m 40
Power 22Kw motor or 40Kw Diesel Engine
Vertical Pumping Distance/mm 120*800
Maxinmun Aggregate/mm 20
Hydraulic Oil Capacity/L 100L
Outlet Size/mm 80
Dimensions/mm 2400*1000*1300
Weight/Kg 1100
Reliable equipment quality Small secondary construction column pumps mostly use
dual-pump, dual-circuit open hydraulic systems. The pumping system is simple,
the components have a long service life and high reliability. Fully enclosed
structural electrical control box, protection control device can work under
harsh conditions. The Plc dual system control design simplifies the circuit
while significantly improving its reliability and lifetime. Make the equipment
work continuously.

Product use: Effectively solve the problem that the top of the bottom column is
difficult to be poured in high quality during the pouring process of the
structural column, and the flatness and the perceived quality of the structural
column are guaranteed. It is suitable for high-rise concrete fine stone
transportation, construction floor group structure column pouring, high pumping
efficiency, pumping system is ten times of manual construction, which
effectively improves production efficiency and saves labor cost. It is
secondary structural column pouring. A good helper. The secondary construction
column pouring machine is small in size, simple in operation, low in labor
intensity, flexible in construction on the floor, and can be placed close to
the lintel and the pillar.

Minimum Order: 1 sets
