Contact: Ms. Sarah Ren
Company: Nanpi County Jude Transmission Equipment Manufacturing Co., Ltd.
South Side of Boyan Road, Liubali Township, Cangzhou, Hebei, China
Cangzhou 061000
China
Phone: 86-317-8316866
Fax: 86-0317-8198069
E-Mail: Send Inquiry Member for over 1 year
Date/Time:  3/29/23 9:01 GMT

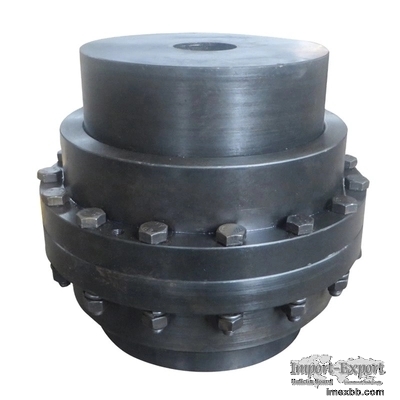

Carburizing Flexible Gear Coupling / Steel Shaft Couplings For Hoisting Equ

Product Description
GIICL Gear Flexible Coupling Used In Hoisting And Transport Equipment 1010G10
1010G20


Product Description
Feature of the GIICL gear shaft coupling

(1) Strong bearing capacity.
(2) The compensation of angular displacement is large
(3) The end of the outer tooth is shaped like a horn, which makes the mounting
and dismounting of inner and outer teeth very convenient
(4) Transmission efficiency is up to 99.7%

products images
Carburizing Flexible Gear Coupling / Steel Shaft Couplings For Hoisting
Equipment 0



Carburizing Flexible Gear Coupling / Steel Shaft Couplings For Hoisting
Equipment 1

Type G20 Standard Flanged Sleeve Double Engagement



For Sizes 1010G -1055G

Type G10 Shrouded Bolts furnished only when specified on order



Size Torque Rating (Ib-in) Allow Speed RPM Max Bore Min Bore
CpIgWtWith No Bore (b) LubeWt (lb) A B C D F
H J M GAP
G10 G20
1010G 10,080 8,000 1.875 0.50 9 10 0.09 4.56 3.50
1.69 2.70 3.30 0.55 1.53 2.00 0.125
1015G 20,790 6,500 2.375 0.75 17 20 0.16 6.00 4.00
1.94 3.40 4.14 0.75 1.88 2.40 0.125
1020G 37,800 5,600 2.875 1.00 30 35 0.25 7.00 5.00
2.44 4.14 4.98 0.75 2.34 3.00 0.125
1025G 66,150 5,000 3.625 1.25 55 65 0.50 8.38 6.25
3.03 5.14 6.10 0.86 2.82 3.60 0.188
1030G 107,100 4,400 4.125 1.50 85 95 0.80 9.44 7.37
3.59 6.00 7.10 0.86 3.30 4.20 0.188
1035G 163,800 3,900 4.875 2.00 135 150 1.20 11.00 8.63
4.19 7.00 8.32 1.12 3.84 5.10 0250
1040G 270.900 3,600 5.750 2.50 195 215 2.00 12.50 9.75
4.75 8.25 9.66 1.12 4.38 5.70 0250
1045G 371,700 3,200 6.750 3.00 280 300 2.30 13.62 10.93
5.31 9.25 10.79 1.12 4.84 6.50 0.312
1050G 500,900 2,900 7.375 3.50 390 420 3.90 15.31 12.37
6.03 10.00 12.04 1.50 5.54 7.20 0.312
1055G 655,200 2,650 8,250 4.00 525 550 4.90 16.75 13.56
6.62 11.00 13.16 1.50 6.22 8.00 0.312
1060G 800100 2450 9.125 4.5 _ 675 7 18 15.13
7.41 12 14.41 1 6.66 9 0.312
About Us
Carburizing Flexible Gear Coupling / Steel Shaft Couplings For Hoisting
Equipment 2

Nanpi county Jude transmission equipment manufacturing co., LTD. is a
enterprises that specialized in research and production coupling. Also we can
develop new products and bulk-production. With rich experience, professional
R&D team and various equipment in coupling, it has superior conditions to
satisfied your different requirements.

Company main products are: all kinds of couplings for machinery
industry all over the word , such as radial elastic coupling, tyred coupling,
universal coupling, drum gear coupling, plum flower form elastic coupling,
rigid coupling oldham coupling, roller chain coupling, diaphragm coupling,
coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel
pin coupling, pump shaft coupling, etc..

The concepts of our company is live on quality and develop on honor.
The coupling has the advantage of high quality, low price, complete product
models.Our company will be your best choice, and we look forward to cooperate
with you.

Carburizing Flexible Gear Coupling / Steel Shaft Couplings For Hoisting
Equipment 3

FAQ
Q1: Are you trading company or manufacturer ?

A: We are factory.



Q2:Do you provide samples ? is it free or extra ?

A: : Yes, we could offer the sample but not for free.Actually we have a very
good price principle, when you make the bulk order then cost of sample will be
return to you.



Q3: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if
the goods are not in stock, it is according to quantity.



Q4:How long is your warranty?

A: Our Warranty is 12 month.



Q5 :Do you have inspection procedures for coupling ?

A:100% self-inspection before packing



Q6. What’s your payment?

A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have
a visit to your factory before the order? A: Sure,welcome to visit our factory.
Carburizing Flexible Gear Coupling / Steel Shaft Couplings For Hoisting Equ
