EN1317 W Beam Traffic Crash Barrier for Road Safety

Our W-beam guardrail product is formed in accordance with the latest highway
safety barrier technology for making sure its high durability and maximum
strength.
It is made of high quality steel, which reduces the impact force caused by
mobile equipment to the maximum extent.
Meanwhile, the zinc coating or PVC coating perfectly combined to the W-beam
guardrail keeps the products free of damages of corrosion and rust.
Parameters
Guardrail Standard EN1317
Totally Length 4300MM
Effective Length 4000MM
Base Steel thickness 2.5MM / 3.0MM;Can be customized
Material S355JR Steel
Yield Point Minimum 345Mpa (50000psi);
Tensile Strength Minimum 483Mpa (70000psi);
Surface Treatment Hot Dip Galvanized
Zinc Coating Average 55μm or 395g/m2;Can be customized
Coat Standard ISO 1461
Free Sample Available
Curved W Beam Can be customized

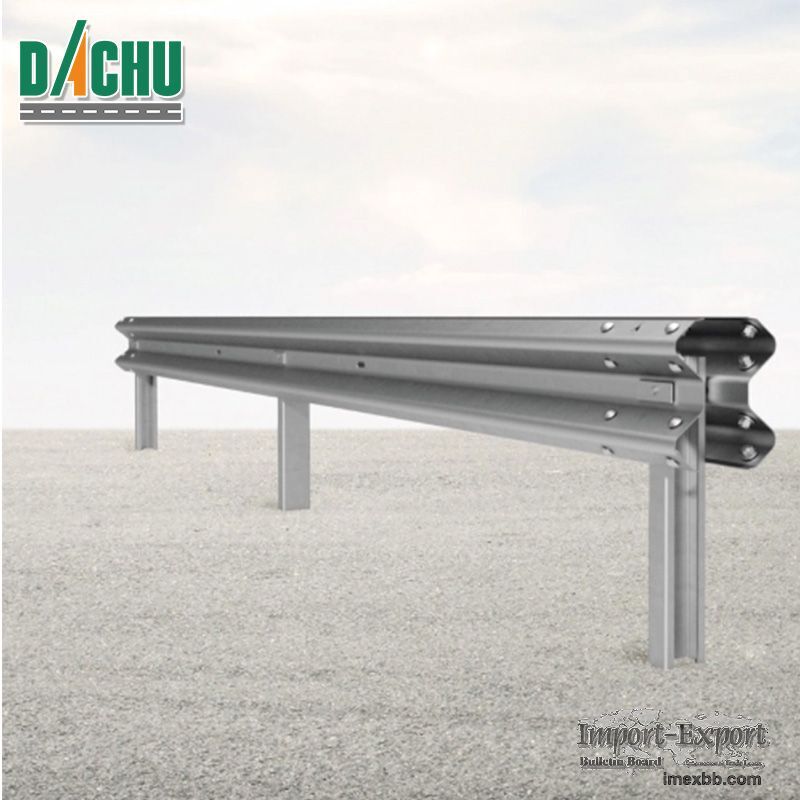

EN1317 W Beam Traffic Crash Barrier for Road Safety
