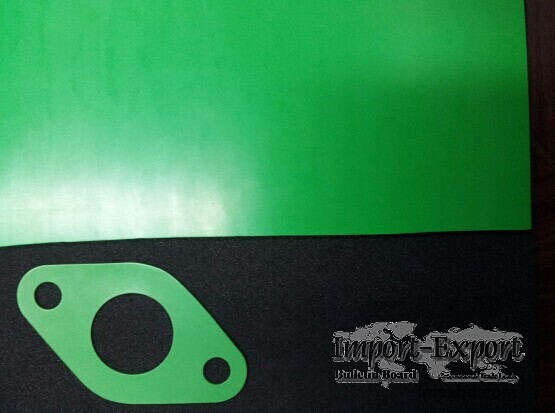

Fluorubber Sheet, FKM Sheet, FPM Sheet

Fluorubber Sheet, FKM Sheet, FPM Sheet


Description: the fluorubber sheet, FKM sheet are made by drum
vulcanizer(ROTOCURE) or plate vulcanizer with high quality fluorubber. The
fluorubber(FKM) is a flouroelastomer created for today most demanding
applications. It has very excellent resistance to acids, hot water, low
pressure steam, chlorinated solvents, aliphatic and aromatic hydrocarbons,
petroleum oils, fuels, ozone and weather, lubricants, animal and vegetable
oils. With very wide service temperature range of -30 to +250 celsius. The
fluorubber are well known for its high performance rubber with excellent
resistance to hydrocarbons, chemicals, oil and heat. It also has outstanding
resistance to compression, especially at elevated temperature. This rubber
sheet is widely used in oil industry, aviation field, automotive industry,
aerospace and other aggressive environments. 0.5-6mm thickness made by drum
vulcanizer(ROTOCURE) with shiny surface, 7-100mm thickness made by plate
vulcanizer for higher thickness. With many high characters such as high heat
aging resistance, high temperature resistant, ozone resistant, oil resistant,
vacuum resistant, acid & alkali resistant, chemic cautery resistant. It could
work in air, oil, acid or alkali and all kinds of other chemic solution which
contains 100% cautery material at the temperature of -30°C - +250°C(moment
320°C maximum). Appearance of product this type feels gleaming and flattening.
Allowable variation of thickness is tiny and all physical indexes are
excellent. With outstanding performances of high temperature resistant, oil-
proof, strong acid and alkali proof the product could withstand hard
environment's test. Multi hardness fluorin rubber plate with 2m ultimate
thickness and 0.5mm ultimate thinness could meet the requirement of all
industries. Apply to punch all kinds of seals, gaskets at military,
spaceflight, automotive, chemical industry, aerospace, fluid power, power train
systems, safety and handling, fuel systems, appliances and other high-tech
request. Allowed buyers offer particular technical demand such as insulation,
textile insertion, metal mesh insertion and mat surface, we could make it
according to contract signified.



Specifications:

m , aterial: virgin fluorubber

quality: industrial grade, FDA grade with postcure

color: black, brown, red, green, yellow, white etc.

surface: smooth/smooth, smooth/impression fabric, double impression fabric

Insertion: reinforce and insert 1-3 PLY fiberglass fabric, aramid fabric or
wire mesh SS201, SS304, SS316

tensile strength: 5-12Mpa

hardness: 60, 70+/-5Shore A

elongation: 200%

density: 1.9-2.1g/cm3

working temperature: -40°C - +250°C(moment 320°C maximum)

thickness: 0.5-100.0mm

width: 0.1-2.0m

length: 0.1-20m

OEM & customized size are agreed

packing in rolls and pallets

***when you enquiry, pls confirm the size and quantity***

Also supply FKM cord, FKM hose, FKM gasket, FKM ring etc.

Minimum Order: 1 pieces
