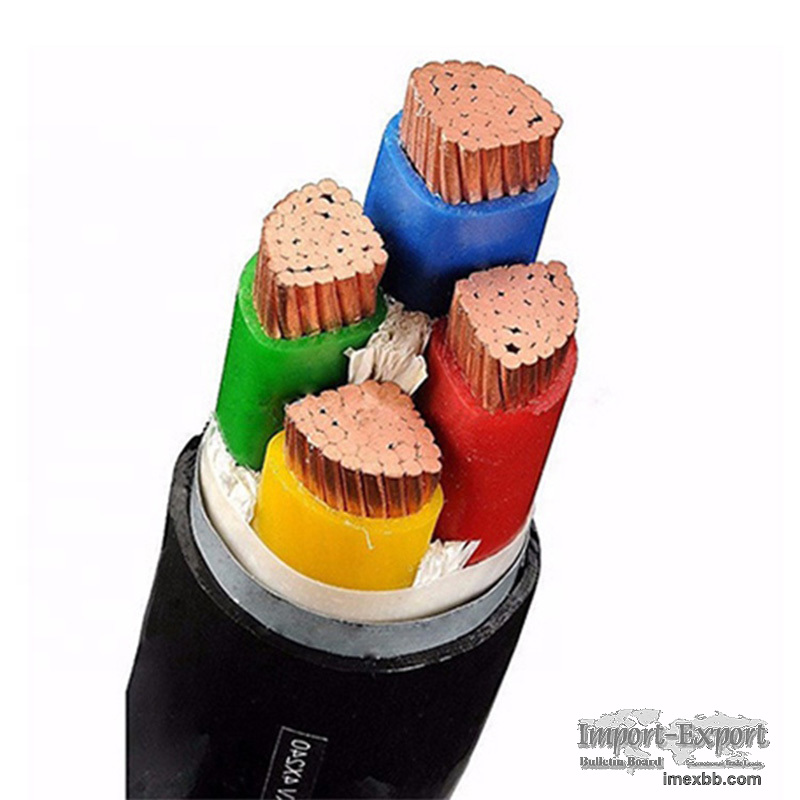

0.6/1kV STA Armored Copper Power Cable

Product Description
https://www.ruitiancables.com/produ , cts/0-6-1kv-sta-armored-copper-cable.html

A , pplication
The cable are mainly used for power distribution in power stations, industrial
installation and switchgears, as well as in local mains. Apply to shafts, water
and soil, able to bear the larger positive pressure. Able to bear certain
traction during installation. For fixed installation underground, in interior
premises, cable ducts, in the open air and in water if no risk of any
mechanical damage is to be expected. Laying single core cable in magnetic ducts
is not allowed.



Characteristics
Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short
circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed
position

Min. Bending Radius: 12 x cable O.D for multi core
Standards
International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS, DIN and ICEA upon request



Certificates
CE, RoHS, CCC and more others at request

Minimum Order: 100 metres
