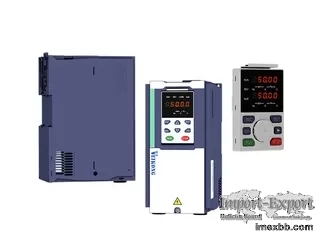

0.75KW-4KW Single Phase Solar Pump Inverter For Solar Irrigation System

0.75KW 1.5KW 2.2KW 4KW Single Phase Solar Pump Inverter For Solar Irrigation
System

Product Features:



1, Support both DC/AC input and 220V level


2, Support both single phase output and three phase output


3, Built-in C3 EMC filter for better harmonic and VDR grounding conforming


4, Widely working voltage can work as low as 350V-800VDC for 380V level and
200-410VDC for 220V level


5, Support input power from solar panels, on-grid power, generator..


6, Can be used with solar panels in day time, at night with on-grid power or
generator


7, Can switch between solar panels and on-grid power automatically


Electrical Specifications





220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

N , ormal working DC voltage

260V-400V

400V-650V

R , ecommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Bel , ow 1000m; above 1% for every additional 100m.

Standard

CE/ROHS

Click to Enlarge
