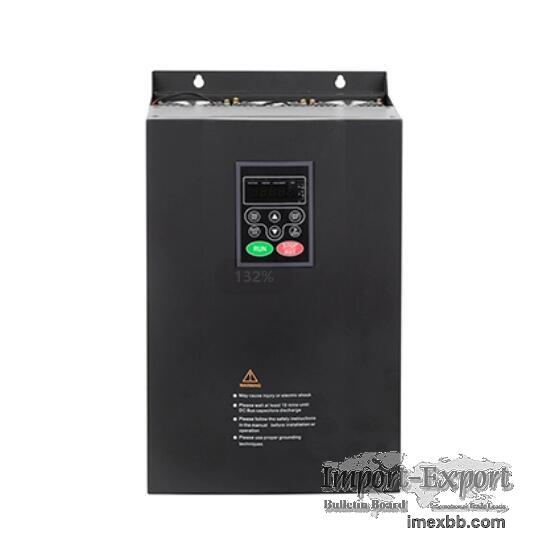

MPPT Solar Pump Inverter

AC20 Series is a 3 phase solar pump inverter with mppt and vfd which is special
designed for solar photovoltaic pump to replace battery with retain water. This
China mppt vfd solar inverter has the characteristics of high quality, multi-
function, low noise, strong universality, etc.

Technical Data of MPPT Solar Pump Inverter

Model Rated Output Curent(A) Moter Power(kW) installation Dimeasion
External Dimeasion Installation Hole(mm)
A(mm)
B(m m) OH
W(mm) D(mm)
Veltage:DC220V-DC370Vor AC220V+15%
AC220V+15
AC20-2T0.75GB 4.5 0.75 114 174 186 126 163.8 5
AC20-2T1.5GB 7 1.5
AC20-2T2.2GB 10 2.2
AC20-2T3.7GB 17 3.7 114 174 186 126 185 5
AC20-2T5.5GB 25 5.5 129 242 258 145 176.5 5.5
AC20-2T7.5GB 32 7.5 146 301 313 161 210 6
AC20-2T11G 45 11 185 330 342 200 200.5
AC20-2T15G 60 15
AC20-2T18.5G 75 18.5 233 381 400 251 213 6
AC20-2T22G 91 22
AC20-2T30G 112 30 199 534 554 336 327.5 9
AC20-2T37G 150 37
AC20-2T45G 176 45
AC20-2T55G 210 55
Voltage:DC420V-DC720V or AC380V+15%
AC20-4T0.75GB 2.1 0.75 114 174 186 126 163.8
5
AC20-4T1.5GB 3.8 1.5
AC20-4T2.2GB 5.1 2.2
AC20-4T3.0GB 9.5 4 114 174 186 126 185
5
AC20-4T4.0GB 14 5.5
AC20-4T5.5GB 18.5 7.5 129 242 258 145 176.5
5.5
AC20-4T7.5GB 25 11 146 301 313 161 210
6
AC20-4T11GB 32 15
AC20-4T18.5GB 38 18.5 185 330 342 200 200.5
6
AC20-4T22G 45 22
AC20-4T30G 60 30 233 381 400 251 213
6
AC20-4T37G 75 37
AC20-4T45G 92 45 199 534 554 336 327.5
9
AC20-4T55G 115 55
AC20-4T75G 152 75
AC204T90G 180 90
AC204T110G 215 110
AC204T132G 260 132 360 848 870 503 362
11
AC204T160G 305 160
AC204T200G 340 185
AC204T220G 380 200

Features of mppt vfd solar pump inverter
1. Modern mppt vfd Technology

Maximum power point tracking functionality ensures that the system gets the
highest power output from the solar panels and that the pumping mechanism is as
efficient as possible.

2. Support Independent Photovoltaic and Grid Power Sources

Solar pump inverter without battery is the ideal solution for agricultural
irrigation in off-grid areas.

3. Choice and Automatic Switching

Users may monitor and control the drive and alter parameters from anywhere
using the optional GPRS modules.


4. Sleep Automatically

Automatic start and stop in the morning for full tank and well water deficit.

5. Protection against water scarcity

The inverter has a water scarcity protection feature, automatically shutting
down the pump when water levels are insufficient, preventing system damage.

For more information about what is the function of mppt in solar inverter,
please feel free to contact us!
