1.5T Ribbon Cable Crimping Machine

This 12k crimps/hour 1.5T ribbon cable crimping machine can replace the OTP
transverse die arbitrarily,simpler than the old model, fast debugging,output
can reach 12000 pcs per hour. It adopts new NC debugging parameters and LCD
display. It eliminates the steps of difficult mold adjusting, and has
exquisite design,greatly reduces the labor intensity of workers, improves
production efficiency and effectively controls the undesirable rate. Easy
operation and free maintenance.
Technical Parameter
Size:260*300*780mm(L*W*H)
Weight , :80KG
Power Source: Single Phase 220VAC/ 50/60HZ,10A
Display: Chinese/English (English refers to user manual)
Total Power:550W
Cylinder Pressure:0.4-0.7MPa(adjustable)
Working Efficiency: 12000 crimps/hour(cauculated as 12Pins above ribbon
cable)
Appropriate Wire: 0.8-2.0mm,AWG20-28,
Red Blue White FBC(2468),Grey FBC(2651),Color FBC and etc 2-40pins
Cutting Length:>70mm
Ribbon Cable Split Length: 30mm
Crimping Strength: 1.5T

Minimum Order: 1 pieces

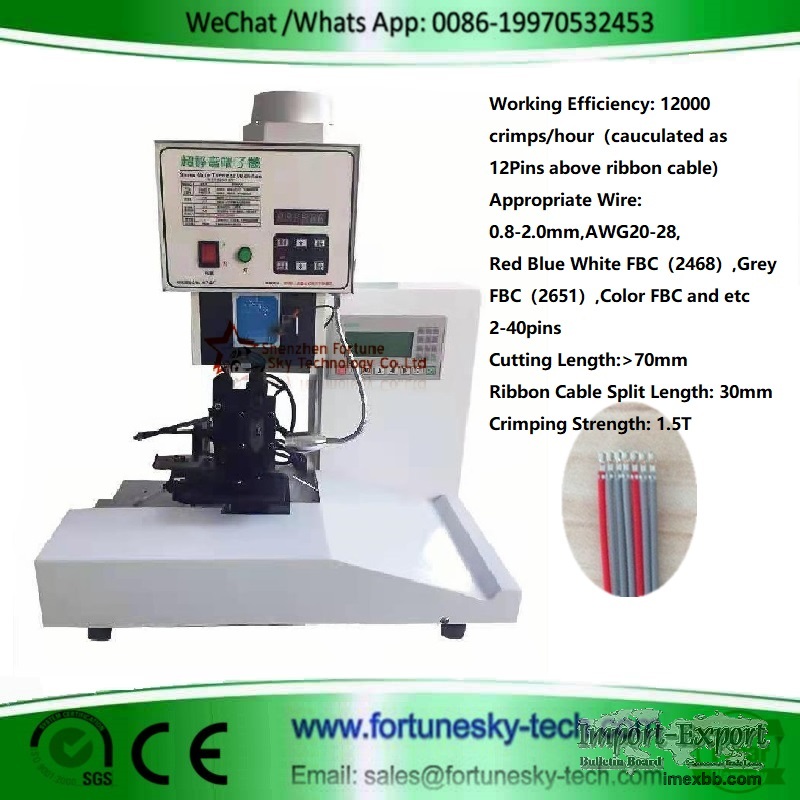

1.5T Ribbon Cable Crimping Machine
Enlarge Click to Enlarge
