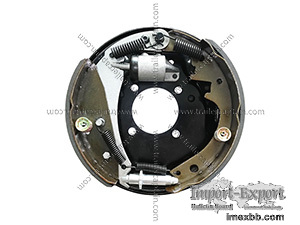

10" x 2 1/4" Trailer Hydraulic Free Backing Brake Assembly

√

Hydraulic Drum Brakes

√

10 x 2 1/4 inch Drum

√

10" Trailer Brake

√

3500 lbs

√

Marine Brake Assembly

√

Free Backing

√

Trailer Hydraulic Brakes

√

Hydraulic Backing Plates



This 10“ x 2.25” hydraulic trailer brake assembly is free backing type, fits
standard 4 bolt mounting flange. The brakes work with 10 inch trailer brake
drums for 3500 lbs (3.5k) trailer axles. 10” hydraulic free backing brakes
incorporates a “fall-away” shoe which diminishes shoe drag when backing up.
12” or 10” trailer brake is great for boat trailers, so the hydraulic trailer
brakes wholesaler usually stocks lot of them.

Features

l Hydraulic free-backing brakes use with a surge-type trailer brake actuator.

l Free-backing design lets you reverse without trailer brakes being activated.

l E-coated backing plates resist wear and corrosion.

l Periodic manual adjustment required.

l These hydraulic trailer brakes exchange with most axle brands including
Dexter, AL-KO, Demco, and many others.

Specifications

Ø Dimension: 10 inch x 2 1/4 inch

Ø Axle Capability: 3500 lbs Axle (13", 14”, 15" Wheel)

Ø Mounting Flange Bolt Pattern: 4 bolt

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

² 10” x 2 1/4" Bonded Free Backing Brake Shoe Kit x 1

² E-Coated Back Plate x 1

² Single-Servo Wheel Cylinder x 1

² Springs x 2

² Adjuster X 1

Minimum Order: 300 pieces
