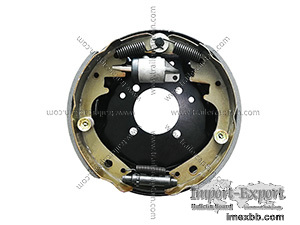

10" x 2 1/4" Trailer Hydraulic Uni-Servo Brake Assembly

√

Hydraulic Drum Brakes

√

10 x 2.25 inch Drum

√

Manual Adjustment

√

3500 lbs

√

Hydraulic Trailer Brake

√

Uni-Servo

√

Marine Trailer Brakes

√

Trailer Brake Assembly



10 inch hydraulic drum brakes are rated 3.5k lbs per pair. 10” x 2.25”
trailer hydraulic backing plate is fully assembled for a quick and easy
installation. The hydraulic drum brakes for trailers are ready to bolt to the
4-hole mounting flange. These hydraulic trailer brake kit interchanges with
most major brands of axles, without modifying the axle or mounting flange, such
as Demco, Atwood, Axletek, Lippert and Dexter. Please note that the hydraulic
brake assembly will deliver 20 percent braking when traveling in reverse.

Features

l Hydraulic drum brake assemblies are designed for use with a surge-type
trailer brake actuator (sold separately).

l Fully Assembled; Quick and easy installation.

l E-coated backing plates resist wear and corrosion.

l Periodic manual adjustment required.

l These 10" hydraulic uni-servo trailer brakes exchange with most axle brands
including Dexter, AL-KO, etrailer, Demco and many others.

Specifications

Ø Dimension: 10 inch x 2 1/4 inch

Ø Axle Capability: 3500 lbs Axle (13", 14”, 15" Wheel)

Ø Mounting Flange Bolt Pattern: 4 bolt

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition


² 10” x 2 1/4" Bonded Uni-Servo Brake Shoe Kit x 1

² E-Coated Back Plate x 1

² Single-Servo Wheel Cylinder x 1

² Springs x 2

² Adjuster X 1

Minimum Order: 300 pieces
