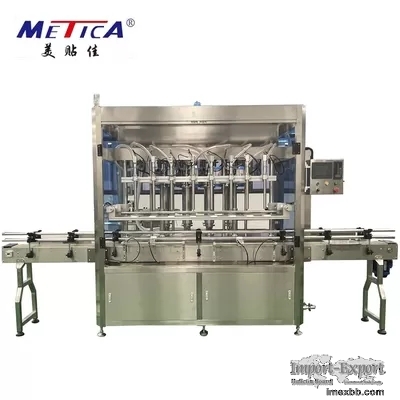

1000ml 100ml Bottle Filling Machine Paste Liquid Bottling Machine 3000 Bott

Product Description
100-1000ml 8 Nozzles Automatic Liquid And Paste Bottling Machine Bottle Filling
Machine



Application

This machine used for all kinds of liquid and high viscosity liquid
product,such as Disinfectant and Medical Alcohol, sauce/paste/jam/edible oil
and viscosity liquid filling.
If change the shape of bottle, just need adjust the convey belt protect
hinder, the hinder bottle board, and the distance of filling heads. Simple and
convenient, one machine can used many kinds of bottle.
The filling heads designed for many heads (can be designed depend on the
product capacity), will not be break the machine when the speed is high or act
quickly.


Spec and Feature

Adopts piston + servo motor driven. Also we can use overflow and pneumatic type
filling system. High precision filling machine, which can adjust the filling
volume according to the different volume of bottles.
Adopts four filling nozzles, can change to 4/6/8/10/12/16 filling nozzles or
more, the more filling nozzles, the higher capacity.
Diving filling method is available
High filling speed and filling precision, no bubble,stable
Filling volume is adjustable in certain filling volume scope
Single nozzle is micro adjustable
International branded electronic parts applied, good performance
Compact models, operation stability, simple operation, easy cleaning
PLC,Touch screen human-computer interface with simple operation
Can work alone or join a production line


Parameter:

Speed

2000-3000bph (customizable)
Filling accuracy >99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + servo motor driven
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range
Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter
1000ml 100ml Bottle Filling Machine Paste Liquid Bottling Machine 3000
Bottle/hour 0
1000ml 100ml Bottle Filling Machine Paste Liquid Bottling Machine 3000 Bott
Enlarge Click to Enlarge
